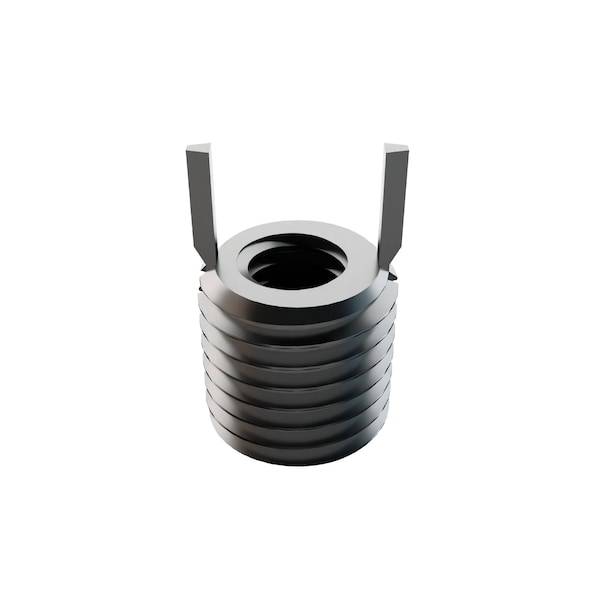

Key Locking Insert, Thin Wall, 2 Keys, M6x1 Int Thrd Sz, M10x1.25 Ext Thrd Sz, Stainless Steel
Mfr # 215-066352
Zoro # G114228816
CAD Available
product price: $65.39
/pk 10, $6.54/eaKey Features
CAD Drawing
Internal Thread Size
M6x1
Material
Stainless Steel
Number of Locking Keys
2
Overall Length
10 mm
External Thread Size
M10x1.25
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215-066352
Zoro #
G114228816
UPC #
-
Country of Origin
United States
Dimensions
Internal Thread Size
M6x1
Overall Length
10 mm
External Thread Size
M10x1.25
Drill Bit Size
7 1/2 mm
Compatible Tap Size
M10x1.25
Minimum Installation Depth
11 1/2 mm
Maximum Hole Diameter
226 mm
Insert Diameter
10 mm
Description
Key Locking Insert, System of Measurement Metric, Insert Diameter 10 mm, Overall Length 10 mm, Internal Thread Size M6x1, Internal Thread Fit 2B, External Thread Size M10x1.25, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Fine, Material Stainless Steel, Finish Plain, Wall Type Thin Wall, Number of Locking Keys 2, Compatible Material Metal, Compatible Tap Size M10x1.25, Drill Bit Size 7 1/2 mm, Minimum Installation Depth 11 1/2 mm, Maximum Hole Diameter 226 mm
