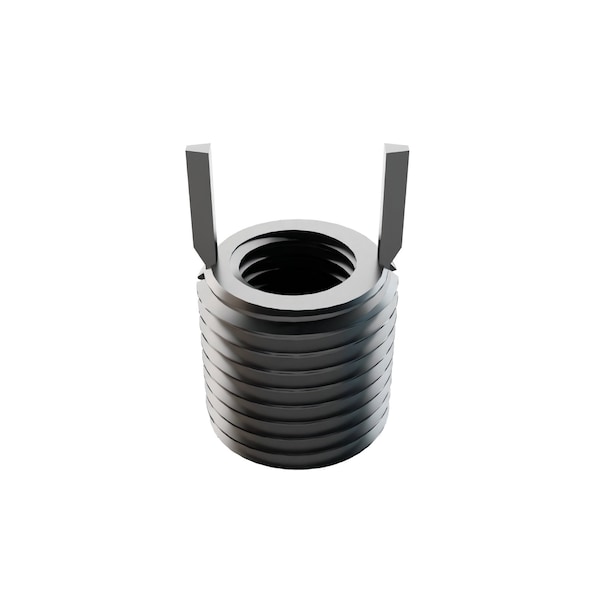

Key Locking Insert, Thin Wall, 2 Keys, M8x1 Int Thrd Sz, M12x1.25 Ext Thrd Sz, Stainless Steel
Mfr # 215-066153
Zoro # G614228804
CAD Available
product price: $26.49
/pk 10, $2.65/eaKey Features
CAD Drawing
Material
Stainless Steel
Number of Locking Keys
2
Overall Length
12 mm
External Thread Size
M12x1.25
Thread Type
Fine
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215-066153
Zoro #
G614228804
UPC #
-
Country of Origin
United States
Dimensions
Internal Thread Size
M8x1
Overall Length
12 mm
External Thread Size
M12x1.25
Drill Bit Size
9 1/2 mm
Compatible Tap Size
M12x1.25
Minimum Installation Depth
13 1/2 mm
Maximum Hole Diameter
10.8 mm
Insert Diameter
12 mm
Description
Key Locking Insert, System of Measurement Metric, Insert Diameter 12 mm, Overall Length 12 mm, Internal Thread Size M8x1, Internal Thread Fit 2B, External Thread Size M12x1.25, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Fine, Material Stainless Steel, Finish Plain, Wall Type Thin Wall, Number of Locking Keys 2, Compatible Material Metal, Compatible Tap Size M12x1.25, Drill Bit Size 9 1/2 mm, Minimum Installation Depth 13 1/2 mm, Maximum Hole Diameter 10.8 mm
