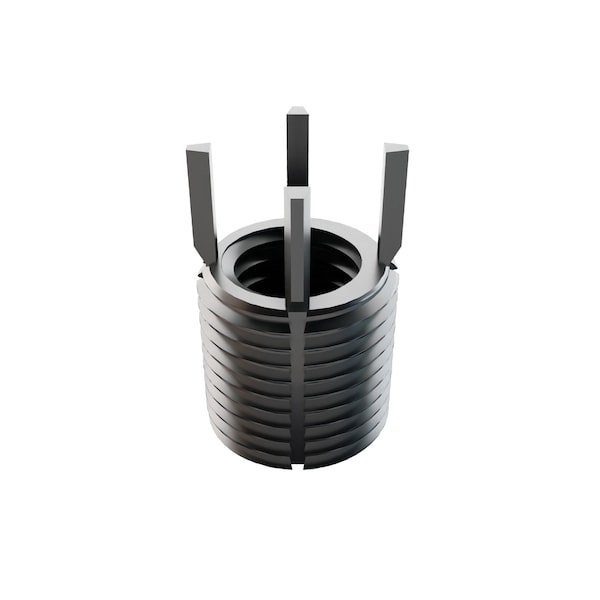

Key Locking Insert, Thin Wall, 4 Keys, M12x1.75 Int Thrd Sz, M16x1.5 Ext Thrd Sz, Stainless Steel
Mfr # 215-066356
Zoro # G114228878
CAD Available
product price: $142.99
/pk 10, $14.30/ea
Free Shipping & Returns
Key Features
CAD Drawing
Material
Stainless Steel
Number of Locking Keys
4
Overall Length
16 mm
External Thread Size
M16x1.5
Thread Type
Fine
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215-066356
Zoro #
G114228878
UPC #
-
Country of Origin
United States
Dimensions
Internal Thread Size
M12x1.75
Overall Length
16 mm
External Thread Size
M16x1.5
Drill Bit Size
13 1/2 mm
Compatible Tap Size
M16x1.5
Minimum Installation Depth
17 1/2 mm
Maximum Hole Diameter
376 mm
Insert Diameter
16 mm
Description
Key Locking Insert, System of Measurement Metric, Insert Diameter 16 mm, Overall Length 16 mm, Internal Thread Size M12x1.75, Internal Thread Fit 2B, External Thread Size M16x1.5, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Fine, Material Stainless Steel, Finish Plain, Wall Type Thin Wall, Number of Locking Keys 4, Compatible Material Metal, Compatible Tap Size M16x1.5, Drill Bit Size 13 1/2 mm, Minimum Installation Depth 17 1/2 mm, Maximum Hole Diameter 376 mm
