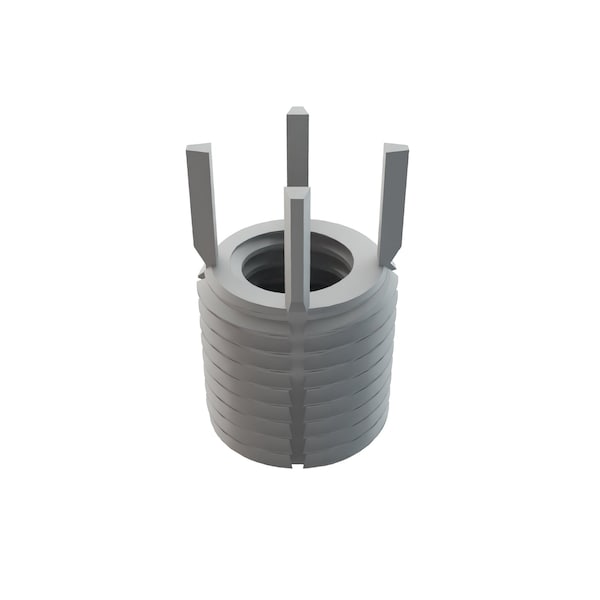

Key Locking Insert, Thin Wall, 4 Keys, M8x1.25 Int Thrd Sz, M12x1.25 Ext Thrd Sz, Steel, 10 PK
Mfr # 215-065953
Zoro # G514228829
CAD Available
product price: $31.79
/pk 10, $3.18/eaKey Features
CAD Drawing
Internal Thread Size
M8x1.25
Material
Steel
Number of Locking Keys
4
Overall Length
12 mm
External Thread Size
M12x1.25
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215-065953
Zoro #
G514228829
UPC #
-
Country of Origin
United States
Dimensions
Internal Thread Size
M8x1.25
Overall Length
12 mm
External Thread Size
M12x1.25
Drill Bit Size
9 1/2 mm
Compatible Tap Size
M12x1.25
Minimum Installation Depth
13 1/2 mm
Maximum Hole Diameter
10.7 mm
Insert Diameter
12 mm
Description
Key Locking Insert, System of Measurement Metric, Insert Diameter 12 mm, Overall Length 12 mm, Internal Thread Size M8x1.25, Internal Thread Fit 2B, External Thread Size M12x1.25, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Fine, Material Steel, Finish Zinc Phosphate, Wall Type Thin Wall, Number of Locking Keys 4, Compatible Material Metal, Compatible Tap Size M12x1.25, Drill Bit Size 9 1/2 mm, Minimum Installation Depth 13 1/2 mm, Maximum Hole Diameter 10.7 mm
