  9. Key Locking Thread Insert, Extra Heavy Wall, 4 Key, 7/16"-20 Int Thd Sz, 11/16"-11 Ext Thd Sz, 10 PK

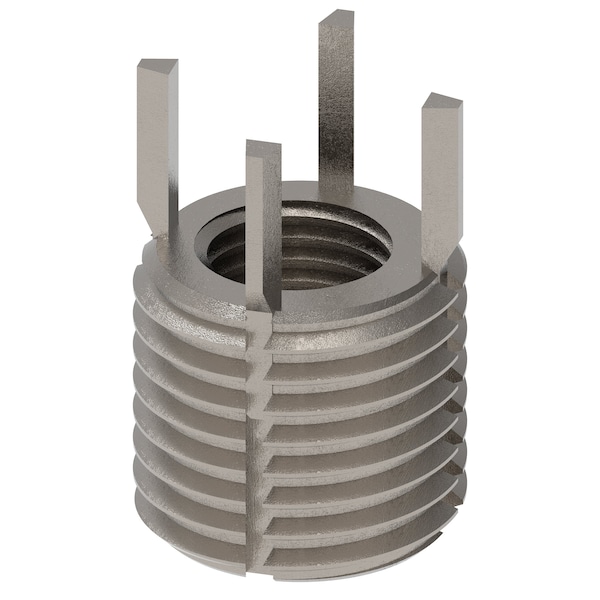

Zoro Select Key Locking Thread Insert, Extra Heavy Wall, 4 Key, 7/16"-20 Int Thd Sz, 11/16"-11 Ext Thd Sz, 10 PK 217-077537 - main

CAD Viewer & Download Files

Key Locking Thread Insert, Extra Heavy Wall, 4 Key, 7/16"-20 Int Thd Sz, 11/16"-11 Ext Thd Sz, 10 PK

  • Mfr # 217-077537

  • Zoro # G910607327

CAD Available
product price: $179.99
/pk 10, $18.00/ea
Free Shipping & Returns

Key Features

CAD Drawing
Internal Thread Size
7/16"-20
Material
Stainless Steel
Number of Locking Keys
4
Overall Length
5/8 in
External Thread Size
11/16"-11
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
217-077537
Zoro #
G910607327
UPC #
-
Country of Origin
United States

Dimensions

Internal Thread Size
7/16"-20
Overall Length
5/8 in
External Thread Size
11/16"-11
Drill Bit Size
39/64 in
Compatible Tap Size
11/16"-11
Minimum Installation Depth
13/32 in
Maximum Hole Diameter
0.646 in
Insert Diameter
11/16 in

Details

CAD Available
Yes
Item
Key Locking Insert
Material
Stainless Steel
Number of Locking Keys
4
Thread Type
Coarse
Wall Type
Extra Heavy Wall
Compatible Material
Metal
Thread Direction
Right Hand
Series
MS
Features
Self Locking
Internal Thread Fit
3B
Material Grade/Class
18-8
Finish
Plain
External Thread Fit
2A
Industry Standards
SAE AS8879
System of Measurement
Inch

Description

Key Locking Insert, System of Measurement Inch, Insert Diameter 11/16 in, Overall Length 5/8 in, Internal Thread Size 7/16 In.-20, Internal Thread Fit 3B, External Thread Size 11/16 In.-11, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Finish Plain, Wall Type Extra Heavy Wall, Number of Locking Keys 4, Compatible Material Metal, Compatible Tap Size 11/16 In.-11, Drill Bit Size 39/64 in, Minimum Installation Depth 13/32 in
