  9. Key Locking Thread Insert, Extra Heavy Wall, 4 Keys, 1/2"-13 Int Thd Sz, 13/16"-16 Ext Thd Sz, 10 PK

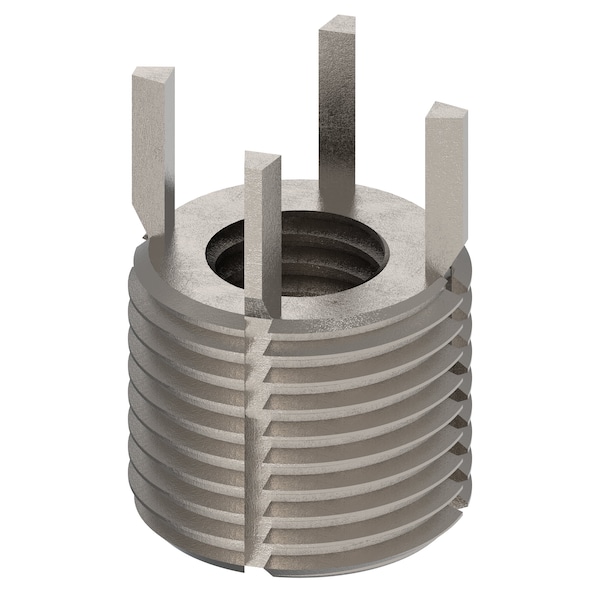

Zoro Select Key Locking Thread Insert, Extra Heavy Wall, 4 Keys, 1/2"-13 Int Thd Sz, 13/16"-16 Ext Thd Sz, 10 PK 217-076338 - main

CAD Viewer & Download Files

Key Locking Thread Insert, Extra Heavy Wall, 4 Keys, 1/2"-13 Int Thd Sz, 13/16"-16 Ext Thd Sz, 10 PK

  • Mfr # 217-076338

  • Zoro # G210607485

CAD Available
product price: $184.99
/pk 10, $18.50/ea
Free Shipping & Returns

Key Features

CAD Drawing
Internal Thread Size
1/2"-13
Material
Stainless Steel
Number of Locking Keys
4
Overall Length
11/16 in
External Thread Size
13/16"-16
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
217-076338
Zoro #
G210607485
UPC #
-
Country of Origin
United States

Dimensions

Internal Thread Size
1/2"-13
Overall Length
11/16 in
External Thread Size
13/16"-16
Drill Bit Size
3/4 in
Compatible Tap Size
13/16"-16
Minimum Installation Depth
1/2 in
Maximum Hole Diameter
0.771 in
Insert Diameter
13/16 in

Details

CAD Available
Yes
Item
Key Locking Insert
Material
Stainless Steel
Number of Locking Keys
4
Thread Type
Coarse
Wall Type
Extra Heavy Wall
Compatible Material
Metal
Features
Non-Locking
Series
MS
Finish
Plain
System of Measurement
Inch
Material Grade/Class
18-8
Internal Thread Fit
3B
External Thread Fit
2A
Thread Direction
Right Hand
Industry Standards
SAE AS8879

Description

Key Locking Insert, System of Measurement Inch, Insert Diameter 13/16 in, Overall Length 11/16 in, Internal Thread Size 1/2 In.-13, Internal Thread Fit 3B, External Thread Size 13/16 In.-16, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Finish Plain, Wall Type Extra Heavy Wall, Number of Locking Keys 4, Compatible Material Metal, Compatible Tap Size 13/16 In.-16, Drill Bit Size 3/4 in, Minimum Installation Depth 1/2 in
