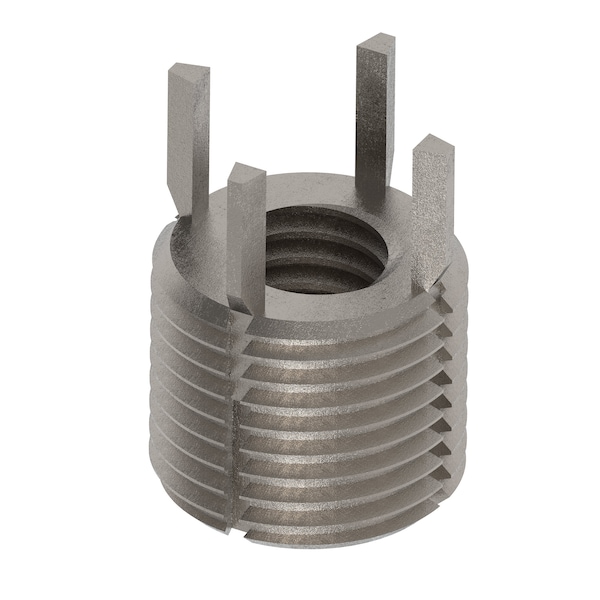

Key Locking Thread Insert, Extra Heavy Wall, 4 Keys, 1/2"-13 Int Thd Sz, 13/16"-16 Ext Thd Sz, 10 PK
Mfr # 217-077338
Zoro # G410607230
product price: $192.99
/pk 10, $19.30/ea
Free Shipping & Returns
$192.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Internal Thread Size 1/2"-13
- Material Stainless Steel
- Number of Locking Keys 4
- Overall Length 11/16 in
- External Thread Size 13/16"-16
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Zoro Select
- MFR # 217-077338
- Zoro # G410607230
- Country of Origin United States
- Category Key Locking Inserts
Dimensions
| Internal Thread Size | 1/2"-13 |
| Overall Length | 11/16 in |
| External Thread Size | 13/16"-16 |
| Drill Bit Size | 3/4 in |
| Compatible Tap Size | 13/16"-16 |
| Minimum Installation Depth | 1/2 in |
| Maximum Hole Diameter | 0.771 in |
| Insert Diameter | 13/16 in |
Details
| Item | Key Locking Thread Insert |
| Material | Stainless Steel |
| Number of Locking Keys | 4 |
| Thread Type | Coarse |
| Wall Type | Extra Heavy Wall |
| Compatible Material | Metal |
| Series | MS |
| Thread Direction | Right Hand |
| External Thread Fit | 2A |
| Finish | Plain |
| Internal Thread Fit | 3B |
| Features | Self Locking |
| Industry Standards | SAE AS8879 |
| Material Grade/Class | 18-8 |
| System of Measurement | Inch |
| CAD Available | Yes |
Description
Key Locking Thread Insert, System of Measurement Inch, Insert Diameter 13/16 in, Overall Length 11/16 in, Internal Thread Size 1/2 In.-13, Internal Thread Fit 3B, External Thread Size 13/16 In.-16, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Finish Plain, Wall Type Extra Heavy Wall, Number of Locking Keys 4, Compatible Material Metal, Compatible Tap Size 13/16 In.-16, Drill Bit Size 3/4 in, Minimum Installation Depth 1/2 in
