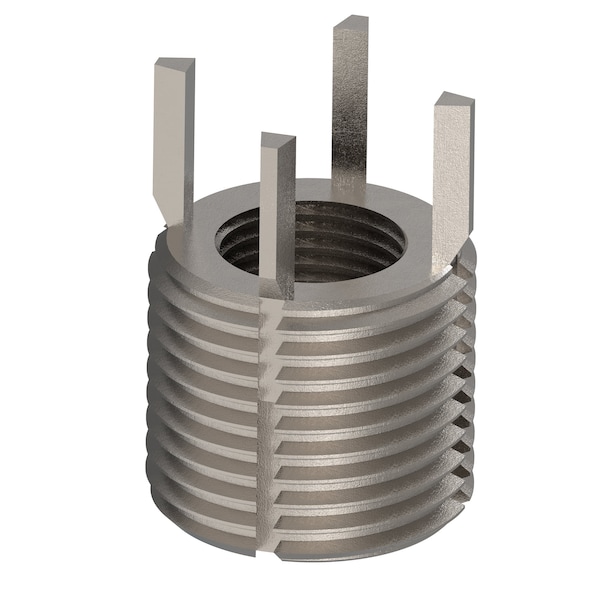

Key Locking Thread Insert, Extra Heavy Wall, 4 Keys, 5/8"-18 Int Thrd Sz, 1"-12 Ext Thrd Sz, 10 PK
Mfr # 217-076540
Zoro # G010607159
CAD Available
product price:Â $285.99
/pk 10, $28.60/ea
Free Shipping & Returns
Key Features
CAD Drawing
Internal Thread Size
5/8"-18
Material
Stainless Steel
Number of Locking Keys
4
Overall Length
7/8 in
External Thread Size
1"-12
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 217-076540
- Zoro #
- G010607159
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Internal Thread Size
- 5/8"-18
- Overall Length
- 7/8 in
- External Thread Size
- 1"-12
- Drill Bit Size
- 59/64 in
- Compatible Tap Size
- 1"-12
- Minimum Installation Depth
- 35/64 in
- Maximum Hole Diameter
- 0.942 in
- Insert Diameter
- 1 in
Details
- CAD Available
- Yes
- Item
- Key Locking Insert
- Material
- Stainless Steel
- Number of Locking Keys
- 4
- Thread Type
- Coarse
- Wall Type
- Extra Heavy Wall
- Compatible Material
- Metal
- Thread Direction
- Right Hand
- Finish
- Plain
- Internal Thread Fit
- 3B
- System of Measurement
- Inch
- External Thread Fit
- 2A
- Material Grade/Class
- 18-8
- Industry Standards
- MS51831-203L, NAS1395C5L
- Series
- MS
- Features
- Non-Locking
Description
Key Locking Insert, System of Measurement Inch, Insert Diameter 1 in, Overall Length 7/8 in, Internal Thread Size 5/8 In.-18, Internal Thread Fit 3B, External Thread Size 1 In.-12, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Finish Plain, Wall Type Extra Heavy Wall, Number of Locking Keys 4, Compatible Material Metal, Compatible Tap Size 1 In.-12, Drill Bit Size 59/64 in, Minimum Installation Depth 35/64 in, Maximum Hole Diameter 0.942 in
