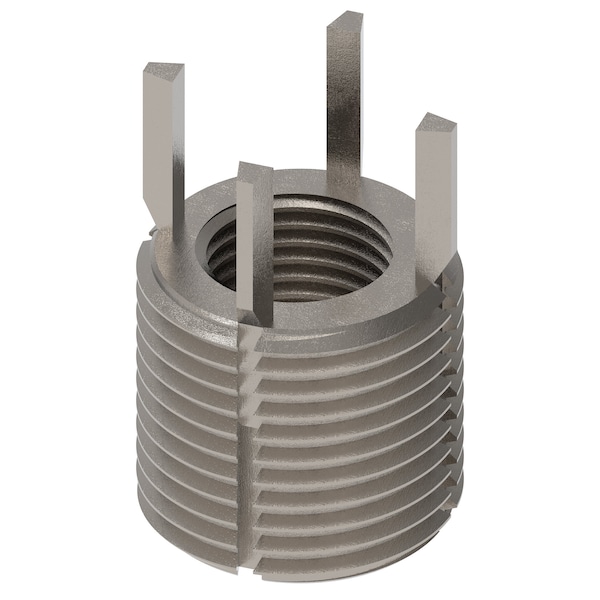

Key Locking Thread Insert, Extra Heavy Wall, 4 Keys, 9/16"-18 Int Thrd Sz, 7/8"-14 Ext Thd Sz, 10 PK
Mfr # 217-077539
Zoro # G710607343
CAD Available
product price: $226.99
/pk 10, $22.70/ea
Free Shipping & Returns
Key Features
CAD Drawing
Internal Thread Size
9/16"-18
Material
Stainless Steel
Number of Locking Keys
4
Overall Length
13/16 in
External Thread Size
7/8"-14
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
217-077539
Zoro #
G710607343
UPC #
-
Country of Origin
United States
Dimensions
Internal Thread Size
9/16"-18
Overall Length
13/16 in
External Thread Size
7/8"-14
Drill Bit Size
13/16 in
Compatible Tap Size
7/8"-14
Minimum Installation Depth
35/64 in
Insert Diameter
7/8 in
Maximum Hole Diameter
0.833 in
Details
CAD Available
Yes
Item
Key Locking Insert
Material
Stainless Steel
Number of Locking Keys
4
Thread Type
Coarse
Wall Type
Extra Heavy Wall
Compatible Material
Metal
Features
Self Locking
External Thread Fit
2A
Industry Standards
SAE AS8879
Internal Thread Fit
3B
Series
MS
Thread Direction
Right Hand
Material Grade/Class
18-8
Finish
Plain
System of Measurement
Inch
Description
Key Locking Insert, System of Measurement Inch, Insert Diameter 7/8 in, Overall Length 13/16 in, Internal Thread Size 9/16 In.-18, Internal Thread Fit 3B, External Thread Size 7/8 In.-14, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Finish Plain, Wall Type Extra Heavy Wall, Number of Locking Keys 4, Compatible Material Metal, Compatible Tap Size 7/8 In.-14, Drill Bit Size 13/16 in, Minimum Installation Depth 35/64 in
