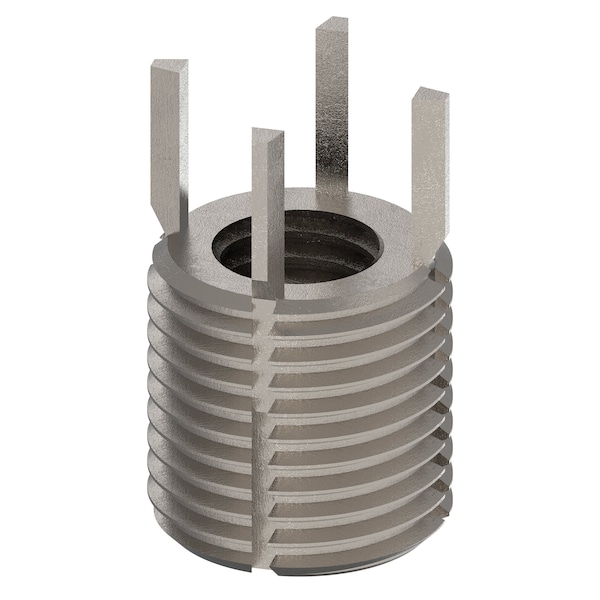

Key Locking Thread Insert, Heavy Wall, 4 Keys, M10-1.50 Int Thrd Sz, M16-1.50 Ext Thrd Sz, 10 PK
Mfr # 217-076367
Zoro # G710607282
CAD Available
product price:Â $83.89
/pk 10, $8.39/eaKey Features
CAD Drawing
Internal Thread Size
M10x1.5
Material
Stainless Steel
Number of Locking Keys
4
Overall Length
16 mm
External Thread Size
M16x1.5
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 217-076367
- Zoro #
- G710607282
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Internal Thread Size
- M10x1.5
- Overall Length
- 16 mm
- External Thread Size
- M16x1.5
- Drill Bit Size
- 14.75 mm
- Compatible Tap Size
- M16x1.5
- Minimum Installation Depth
- 9 35/64 mm
- Insert Diameter
- 16 mm
- Maximum Hole Diameter
- 14.88 mm
- Wire Rope Length
- 16 mm
Description
Key Locking Insert, System of Measurement Metric, Insert Diameter 16 mm, Overall Length 16 mm, Internal Thread Size M10x1.5, Internal Thread Fit 3B, External Thread Size M16x1.5, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Finish Plain, Wall Type Heavy Wall, Number of Locking Keys 4, Compatible Material Metal, Compatible Tap Size M16x1.5, Drill Bit Size 14.75 mm, Minimum Installation Depth 9 35/64 mm, Maximum Hole Diameter 14.88 mm
