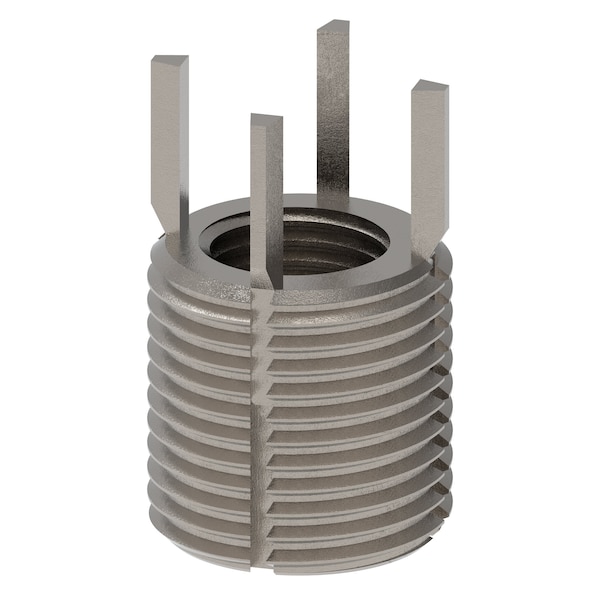

Key Locking Thread Insert, Heavy Wall, 4 Keys, M12-1.25 Int Thrd Sz, M18-1.50 Ext Thrd Sz, 10 PK
Mfr # 217-076569
Zoro # G010652425
CAD Available
product price: $106.99
/pk 10, $10.70/ea
Free Shipping & Returns
Key Features
CAD Drawing
Internal Thread Size
M12x1.25
Material
Stainless Steel
Number of Locking Keys
4
Overall Length
18 mm
External Thread Size
M18-1.50
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
217-076569
Zoro #
G010652425
UPC #
-
Country of Origin
United States
Dimensions
Internal Thread Size
M12x1.25
Overall Length
18 mm
External Thread Size
M18-1.50
Drill Bit Size
16.70 mm
Compatible Tap Size
M18-1.50
Minimum Installation Depth
10 49/64 mm
Insert Diameter
18 mm
Maximum Hole Diameter
16.88 mm
Description
Key Locking Insert, System of Measurement Metric, Insert Diameter 18 mm, Overall Length 18 mm, Internal Thread Size M12x1.25, Internal Thread Fit 3B, External Thread Size M18-1.50, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Finish Plain, Wall Type Heavy Wall, Number of Locking Keys 4, Compatible Material Metal, Compatible Tap Size M18-1.50, Drill Bit Size 16.70 mm, Minimum Installation Depth 10 49/64 mm, Maximum Hole Diameter 16.88 mm
