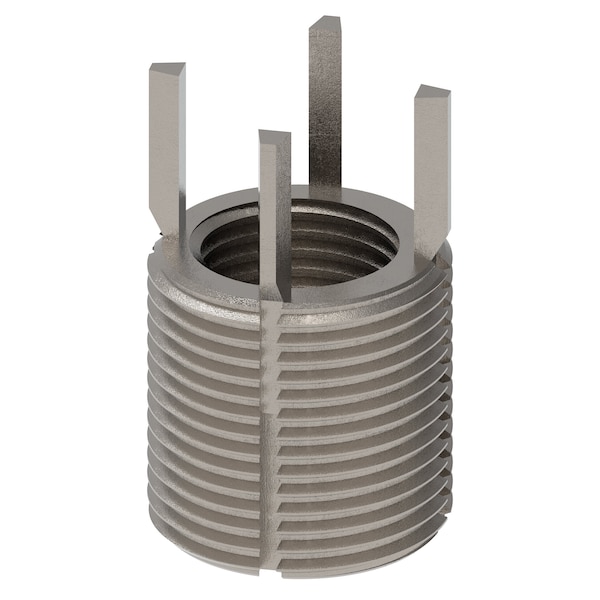

Key Locking Thread Insert, Heavy Wall, 4 Keys, M16-1.50 Int Thrd Sz, M22-1.50 Ext Thrd Sz, 10 PK
Mfr # 217-076571
Zoro # G910607341
CAD Available
product price: $117.99
/pk 10, $11.80/ea
Free Shipping & Returns
Key Features
CAD Drawing
Internal Thread Size
M16x1.5
Material
Stainless Steel
Number of Locking Keys
4
Overall Length
22 mm
External Thread Size
M22-1.50
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
217-076571
Zoro #
G910607341
UPC #
-
Country of Origin
United States
Dimensions
Internal Thread Size
M16x1.5
Overall Length
22 mm
External Thread Size
M22-1.50
Drill Bit Size
20.60 mm
Compatible Tap Size
M22-1.50
Minimum Installation Depth
13 1/2 mm
Maximum Hole Diameter
20.63 mm
Insert Diameter
22 mm
Description
Key Locking Insert, System of Measurement Metric, Insert Diameter 22 mm, Overall Length 22 mm, Internal Thread Size M16x1.5, Internal Thread Fit 3B, External Thread Size M22-1.50, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Finish Plain, Wall Type Heavy Wall, Number of Locking Keys 4, Compatible Material Metal, Compatible Tap Size M22-1.50, Drill Bit Size 20.60 mm, Minimum Installation Depth 13 1/2 mm, Maximum Hole Diameter 20.63 mm
