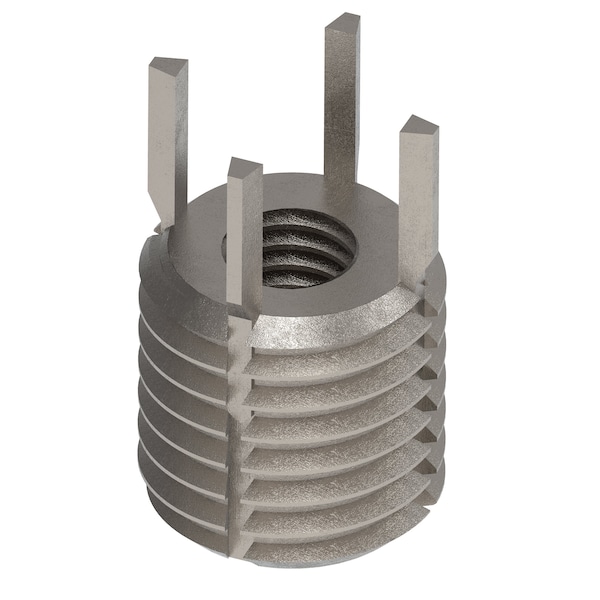

Key Locking Thread Insert, Heavy Wall, 4 Keys, M5-0.80 Int Thrd Sz, M10-1.25 Ext Thrd Sz, 10 PK
Mfr # 217-076364
Zoro # G110607370
CAD Available
product price: $70.25
/pk 10, $7.03/eaKey Features
CAD Drawing
Internal Thread Size
M5x0.8
Material
Stainless Steel
Number of Locking Keys
4
Overall Length
10 mm
External Thread Size
M10x1.25
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
217-076364
Zoro #
G110607370
UPC #
-
Country of Origin
United States
Dimensions
Internal Thread Size
M5x0.8
Overall Length
10 mm
External Thread Size
M10x1.25
Drill Bit Size
8.90 mm
Compatible Tap Size
M10x1.25
Minimum Installation Depth
4 1/2 mm
Insert Diameter
10 mm
Maximum Hole Diameter
8.9 mm
Description
Key Locking Insert, System of Measurement Metric, Insert Diameter 10 mm, Overall Length 10 mm, Internal Thread Size M5x0.8, Internal Thread Fit 3B, External Thread Size M10x1.25, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Finish Plain, Wall Type Heavy Wall, Number of Locking Keys 4, Compatible Material Metal, Compatible Tap Size M10x1.25, Drill Bit Size 8.90 mm, Minimum Installation Depth 4 1/2 mm, Maximum Hole Diameter 8.9 mm
