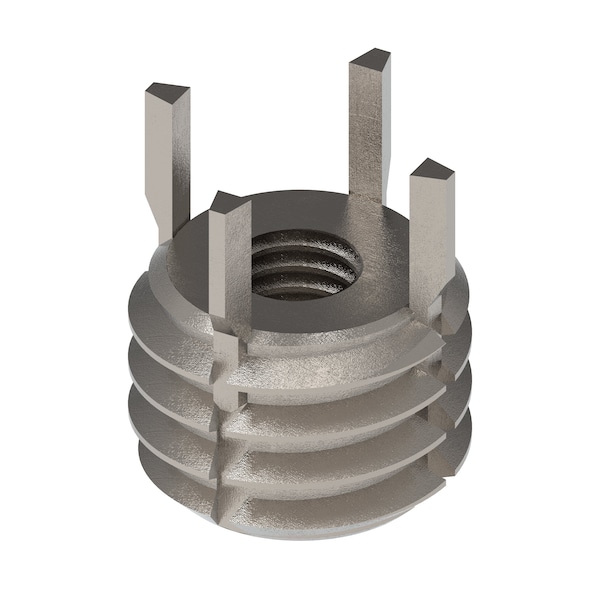

Key Locking Thread Insert, Heavy Wall, 4 Keys, No. 10-32 Int Thrd Sz, 7/16"-14 Ext Thrd Sz, PK10
Mfr # 217-076533
Zoro # G410607162
CAD Available
product price: $114.99
/pk 10, $11.50/ea
Free Shipping & Returns
Key Features
CAD Drawing
Internal Thread Size
#10-32
Material
Stainless Steel
Number of Locking Keys
2
Overall Length
5/16 in
External Thread Size
7/16"-14
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
217-076533
Zoro #
G410607162
UPC #
-
Country of Origin
United States
Dimensions
Internal Thread Size
#10-32
Overall Length
5/16 in
External Thread Size
7/16"-14
Drill Bit Size
3/8 in
Compatible Tap Size
7/16"-14
Minimum Installation Depth
7/32 in
Maximum Hole Diameter
0.401 in
Insert Diameter
7/16 in
Details
CAD Available
Yes
Item
Key Locking Insert
Material
Stainless Steel
Number of Locking Keys
2
Thread Type
Coarse
Wall Type
Extra Heavy Wall
Compatible Material
Metal
System of Measurement
Inch
Series
MS
Internal Thread Fit
3B
Material Grade/Class
18-8
Features
Non-Locking
External Thread Fit
2A
Industry Standards
SAE AS8879
Thread Direction
Right Hand
Finish
Plain
Description
Key Locking Insert, System of Measurement Inch, Insert Diameter 7/16 in, Overall Length 5/16 in, Internal Thread Size #10-32, Internal Thread Fit 3B, External Thread Size 7/16 In.-14, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Finish Plain, Wall Type Extra Heavy Wall, Number of Locking Keys 2, Compatible Material Metal, Compatible Tap Size 7/16 In.-14, Drill Bit Size 3/8 in, Minimum Installation Depth 7/32 in, Maximum Hole Diameter 0.401 in
