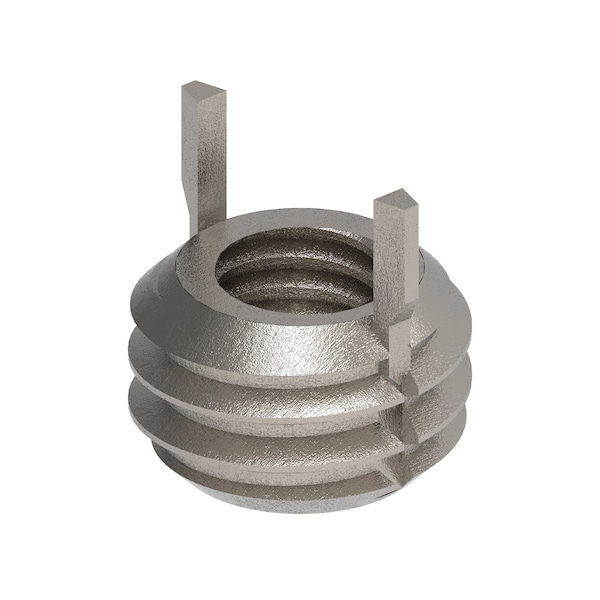

Key Locking Thread Insert, Thin Wall, 2 Keys, M3-0.50 Int Thrd Sz, M5-0.80 Ext Thrd Sz, 10 PK
Mfr # 217-077384
Zoro # G410652414
CAD Available
product price: $94.15
/pk 10, $9.42/ea
Free Shipping & Returns
Key Features
CAD Drawing
Internal Thread Size
M3-0.50
Material
Stainless Steel
Number of Locking Keys
2
Overall Length
3.1 mm
External Thread Size
M5x0.8
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
217-077384
Zoro #
G410652414
UPC #
-
Country of Origin
United States
Dimensions
Internal Thread Size
M3-0.50
Overall Length
3.1 mm
External Thread Size
M5x0.8
Drill Bit Size
4.30 mm
Compatible Tap Size
M5-0.80
Minimum Installation Depth
1 5/32 mm
Maximum Hole Diameter
4.48 mm
Insert Diameter
5 mm
Description
Key Locking Insert, System of Measurement Metric, Insert Diameter 5 mm, Overall Length 3.1 mm, Internal Thread Size M3-0.50, Internal Thread Fit 3B, External Thread Size M5x0.8, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Finish Plain, Wall Type Thin Wall, Number of Locking Keys 2, Compatible Material Metal, Compatible Tap Size M5-0.80, Drill Bit Size 4.30 mm, Minimum Installation Depth 1 5/32 mm, Maximum Hole Diameter 4.48 mm
