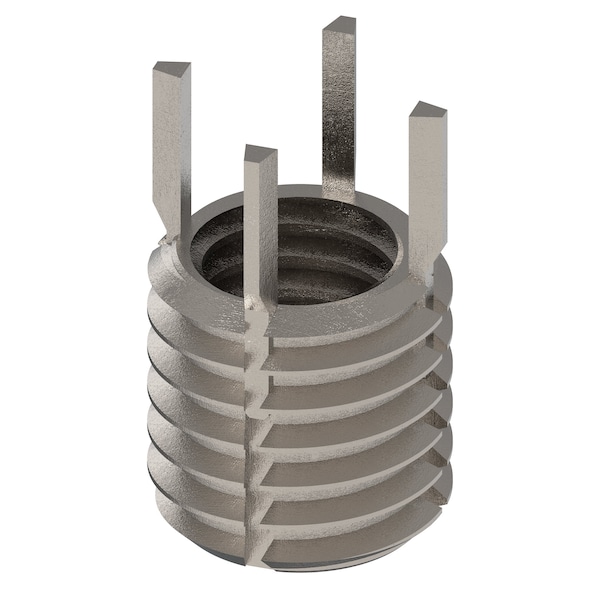

Key Locking Thread Insert, Thin Wall, 4 Keys, 1/2"-13 Int Thrd Sz, 5/8"-11 Ext Thrd Sz, 10 PK
Mfr # 217-077326
Zoro # G510607659
CAD Available
product price:Â $104.99
/pk 10, $10.50/ea
Free Shipping & Returns
Key Features
CAD Drawing
Internal Thread Size
1/2"-13
Material
Stainless Steel
Number of Locking Keys
4
Overall Length
5/8 in
External Thread Size
5/8"-11
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 217-077326
- Zoro #
- G510607659
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Internal Thread Size
- 1/2"-13
- Overall Length
- 5/8 in
- External Thread Size
- 5/8"-11
- Drill Bit Size
- 35/64 in
- Compatible Tap Size
- 5/8"-11
- Minimum Installation Depth
- 11/32 in
- Maximum Hole Diameter
- 0.583 in
- Insert Diameter
- 5/8 in
Details
- CAD Available
- Yes
- Item
- Key Locking Insert
- Material
- Stainless Steel
- Number of Locking Keys
- 4
- Thread Type
- Coarse
- Wall Type
- Thin Wall
- Compatible Material
- Metal
- Features
- Self Locking
- Internal Thread Fit
- 3B
- System of Measurement
- Inch
- Material Grade/Class
- 18-8
- External Thread Fit
- 2A
- Series
- MS
- Industry Standards
- MS51832-104
- Thread Direction
- Right Hand
- Finish
- Plain
Description
Key Locking Insert, System of Measurement Inch, Insert Diameter 5/8 in, Overall Length 5/8 in, Internal Thread Size 1/2 In.-13, Internal Thread Fit 3B, External Thread Size 5/8 In.-11, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Finish Plain, Wall Type Thin Wall, Number of Locking Keys 4, Compatible Material Metal, Compatible Tap Size 5/8 In.-11, Drill Bit Size 35/64 in, Minimum Installation Depth 11/32 in, Maximum Hole Diameter 0.583 in
