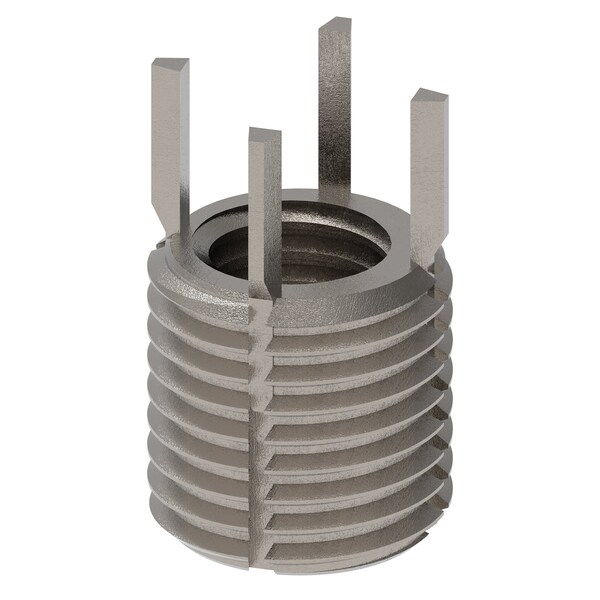

Key Locking Thread Insert, Thin Wall, 4 Keys, M10-1.50 Int Thrd Sz, M14-1.50 Ext Thrd Sz, 10 PK
Mfr # 217-077355
Zoro # G410607254
CAD Available
product price: $111.99
/pk 10, $11.20/ea
Free Shipping & Returns
Key Features
CAD Drawing
Internal Thread Size
M10x1.5
Material
Stainless Steel
Number of Locking Keys
4
Overall Length
14 mm
External Thread Size
M14x1.5
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
217-077355
Zoro #
G410607254
UPC #
-
Country of Origin
United States
Dimensions
Internal Thread Size
M10x1.5
Overall Length
14 mm
External Thread Size
M14x1.5
Drill Bit Size
12.70 mm
Compatible Tap Size
M14x1.5
Minimum Installation Depth
7 35/64 mm
Insert Diameter
14 mm
Maximum Hole Diameter
12.93 mm
Description
Key Locking Insert, System of Measurement Metric, Insert Diameter 14 mm, Overall Length 14 mm, Internal Thread Size M10x1.5, Internal Thread Fit 3B, External Thread Size M14x1.5, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Finish Plain, Wall Type Thin Wall, Number of Locking Keys 4, Compatible Material Metal, Compatible Tap Size M14x1.5, Drill Bit Size 12.70 mm, Minimum Installation Depth 7 35/64 mm, Maximum Hole Diameter 12.93 mm
