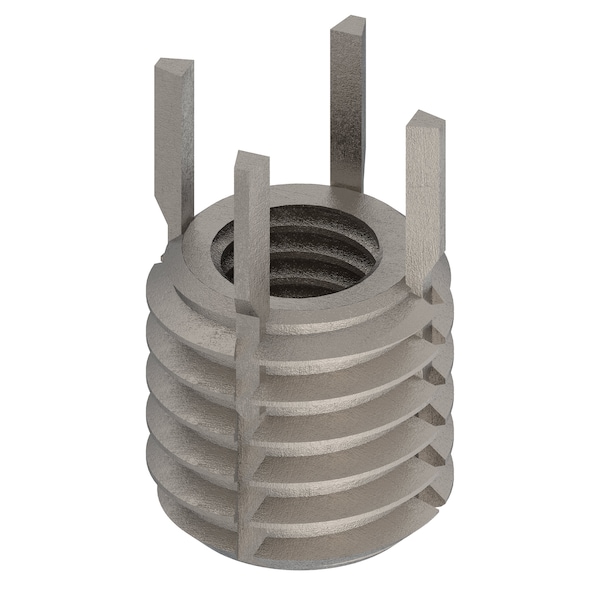

Key Locking Thread Insert, Thin Wall, 4 Keys, M5-0.80 Int Thrd Sz, M8-1.25 Ext Thrd Sz, 10 PK
- Mfr # 217-076351
- Zoro # G710607206
CAD Available
product price:Â
$
67.75
/pk of 10, $6.78/ea
Key Features
CAD Drawing
Internal Thread Size
M5x0.80
Material
Stainless Steel
Number of Locking Keys
4
Overall Length
8 mm
External Thread Size
M8x1.25
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 217-076351
- Zoro #
- G710607206
- UPC #
- -
- Country of Origin
- United States
- CAD Available
- Yes
- Item
- Mil. Spec. Key-Locking Insert
- Material
- Stainless Steel
- Number of Locking Keys
- 4
- Thread Type
- Coarse
- Wall Type
- Thin Wall
- Compatible Material
- Metal
- Finish
- Plain
- Thread Direction
- Right Hand
- Features
- Non-Locking
- External Thread Fit
- 2A
- Industry Standards
- Fed Std. H28/21, MJ Form
- System of Measurement
- Metric
- Series
- MS
- Material Grade/Class
- 18-8
- Thread Pitch
- 1.25 mm
- Internal Thread Fit
- 3B
- Shell Material
- Stainless Steel
- Product Type
- Key-Locking Insert
Dimensions
- Internal Thread Size
- M5x0.80
- Overall Length
- 8 mm
- External Thread Size
- M8x1.25
- Drill Bit Size
- 7.00 mm
- Compatible Tap Size
- M8x1.25
- Minimum Installation Depth
- 4.3 mm
- Maximum Hole Diameter
- 7 mm
- Insert Diameter
- 8 mm
- Wire Rope Length
- 8 mm
- Length
- 8 mm
- Fits Chest Size
- Non-Locking
- Hole Diameter - Maximum
- 7 mm
Description
Mil. Spec. Key-Locking Insert, System of Measurement Metric, Insert Diameter 8 mm, Overall Length 8 mm, Internal Thread Size M5x0.80, Internal Thread Fit 3B, External Thread Size M8x1.25, External Thread Fit 2A, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Finish Plain, Wall Type Thin Wall, Number of Locking Keys 4, Compatible Material Metal, Compatible Tap Size M8x1.25, Drill Bit Size 7.00 mm, Minimum Installation Depth 4.3 mm, Maximum Hole Diameter 7 mm
