  11. Kingpin Swivel Caster, Nylon, 3 in., 660 lb

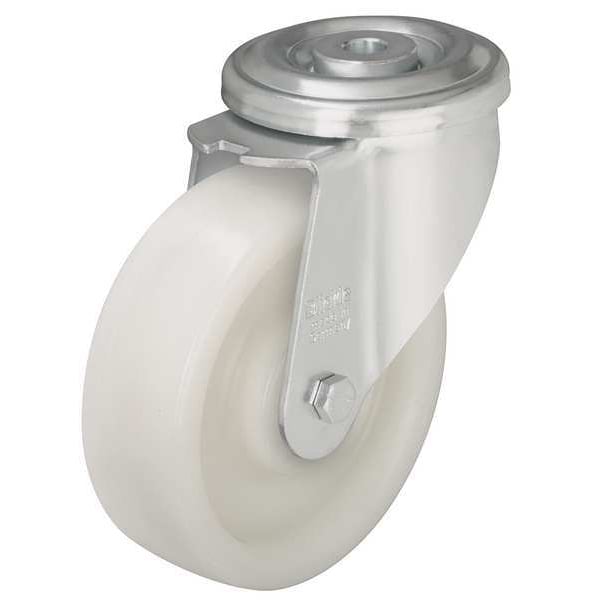

Zoro Select Kingpin Swivel Caster, Nylon, 3 in., 660 lb LKR-SPO 75K - main

Kingpin Swivel Caster, Nylon, 3 in., 660 lb

  • Mfr # LKR-SPO 75K

  • Zoro # G8488943

product price: $40.19
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
660 lb
Wheel Dia.
75 mm
Wheel Width
32 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LKR-SPO 75K
Zoro #
G8488943
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
75 mm
Wheel Width
32 mm
Mounting Height
4 1/4 in
Mounting Bolt Dia.
M12
Overall Height
108 mm
Bolt Hole Dia.
1/2 in
Stem Dia.
1/2" Bolt Hole
Swivel Radius
77.5 mm

Details

Item
Swivel Hollow Kingpin Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
660 lb
Wheel/Tread Material
Nylon
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Ball
Caster Brake Type
No Brake
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Nylon
Core Color
White
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Features
Hollow
Standards
RoHS, ICWM
System of Measurement
Metric
Caster Stem Type
Hollow Kingpin
Wheel Color
White
Caster Temp. Range Available
No
Replacement Wheel
Mfr. No. SPO 75/15K
Caster Wheel Bearings
Precision Ball
Caster Brake Included
No
Caster Raceway
Double Ball
Caster Load Rating Range
Medium Duty
Caster Core Material
Nylon
Caster Wheel/Tread Material
Heavy Duty Nylon
Caster Temp. Range
-25 Degrees To 80 Degrees C
Caster Swivel Lock Type
No Lock Included
Extended Lead
No
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness
70 Shore D
Wheel/Tread Color
White
ESD Conductive
No
Series
LKR Series
Tread
Standard
Includes Thread Guards
No
Tread Shape
Standard
Caster Break Type
No Brake Included
Caster Mounting Type
Hollow Kingpin
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Color
White
Load Capacity
300 kg
Wheel Hardness Rating
70 Shore D
Caster Features
Corrosion-Resistant, Low-Profile, Maintenance-Free
Load Capacity - Maximum
660 lb
Compatible Wheel Manufacturer Model Number
SPO 75/15K
Operating Temperature - Maximum
175 Degrees F
Operating Temperature - Minimum
-5 Degrees F

Description

Bolt-Hole Caster, 1/2 in Bolt Hole Dia., 1/2 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 300 to 999 lb Load Rating Range, 660 lb Load Rating, 1 Number of Wheels, Ball, 4 1/5 in Mounting Height, 3 in Wheel Dia., 1 1/4 in Wheel Width, Nylon Wheel/Tread Material, 70 Shore D Wheel/Tread Hardness, Hard, Yes Non-Marking
