  11. Kingpin Swivel Caster, Poly, 4 in., 660 lb.
Zoro Select Kingpin Swivel Caster, Poly, 4 in., 660 lb. LKR-ALST 100K-FI - main

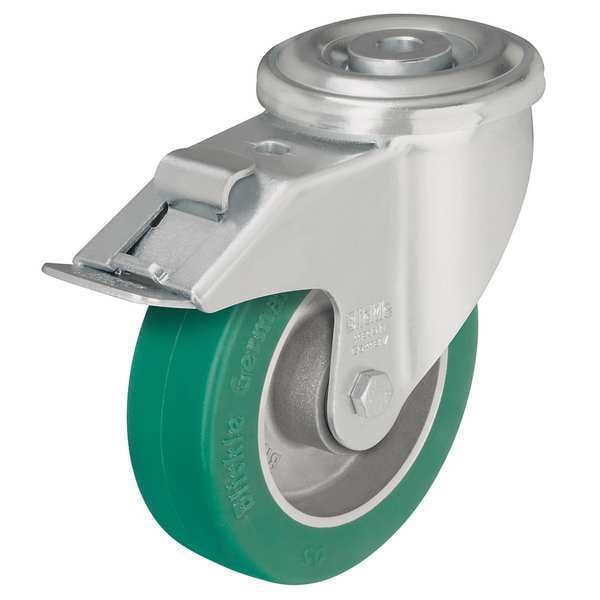

Kingpin Swivel Caster, Poly, 4 in., 660 lb.

  • Mfr # LKR-ALST 100K-FI

  • Zoro # G6574802

product price: $81.15
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Brake
Load Rating
660 lb
Wheel Dia.
100 mm
Wheel Width
40 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LKR-ALST 100K-FI
Zoro #
G6574802
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
100 mm
Wheel Width
40 mm
Mounting Height
5 1/16 in
Mounting Bolt Dia.
M12
Bolt Hole Dia.
1/2 in
Overall Height
130 mm
Stem Dia.
1/2" Bolt Hole
Swivel Radius
95 mm
Tire Thickness
1/2 in

Details

Item
Swivel Hollow Kingpin Caster With Brake
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Brake
Load Rating
660 lb
Wheel/Tread Material
Polyurethane
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Ball
Caster Brake Type
Total Lock
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Aluminum
Core Color
Silver
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Features
Hollow
Standards
RoHS, ICWM
Includes
Stop-Fix Total-Lock Brake
Caster Load Rating Range
Medium Duty
Caster Temp. Range Available
No
Caster Raceway
Double Ball
Caster Brake Included
Yes
Caster Wheel Bearings
Precision Ball
Wheel Color
Green
System of Measurement
Metric
Caster Core Material
Aluminum
Caster Stem Type
Hollow Kingpin
Caster Wheel/Tread Material
Softhane Polyurethane
Replacement Wheel
Mfr. No. ALST 100/15K
Extended Lead
No
Caster Temp. Range
-25 Degrees To 70 Degrees C
Caster Swivel Lock Type
Total-Lock
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness
75 Shore A
Wheel/Tread Color
Green
Caster Mounting Type
Hollow Kingpin
Caster Break Type
Stop Fix Brake (Total Lock)
Includes Thread Guards
No
ESD Conductive
No
Tread Color
Green
Load Capacity
300 kg
Tread
Standard
Tread Shape
Standard
Series
LKR Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Compatible Wheel Manufacturer Model Number
ALST 100/15K
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll
Wheel Hardness Rating
75 Shore A
Operating Temperature - Minimum
-5 Degrees F
Load Capacity - Maximum
660 lb
Operating Temperature - Maximum
160 Degrees F

Description

Bolt-Hole Caster, 1/2 in Bolt Hole Dia., 1/2 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 300 to 999 lb Load Rating Range, 660 lb Load Rating, 1 Number of Wheels, Ball, 5 in Mounting Height, 3 7/8 in Wheel Dia., 1 5/8 in Wheel Width, Polyurethane Wheel/Tread Material, 75 Shore A Wheel/Tread Hardness, Soft, Yes Non-Marking
