  11. Kingpin Swivel Caster, Poly, 5 in., 770 lb.

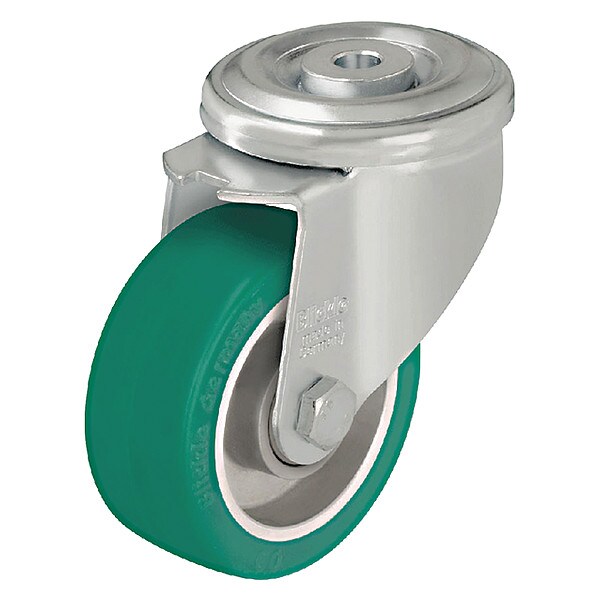

Zoro Select Kingpin Swivel Caster, Poly, 5 in., 770 lb. LKR-ALST 125K - main

Kingpin Swivel Caster, Poly, 5 in., 770 lb.

  • Mfr # LKR-ALST 125K

  • Zoro # G7000506

product price: $83.19
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
770 lb
Wheel Dia.
125 mm
Wheel Width
40 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LKR-ALST 125K
Zoro #
G7000506
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
125 mm
Wheel Width
40 mm
Mounting Height
6 1/16 in
Mounting Bolt Dia.
M12
Bolt Hole Dia.
1/2 in
Overall Height
155 mm
Stem Dia.
1/2" Bolt Hole
Swivel Radius
110.5 mm
Tire Thickness
5/8 in

Details

Item
Swivel Hollow Kingpin Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
770 lb
Wheel/Tread Material
Polyurethane
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Ball
Caster Brake Type
No Brake
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Aluminum
Core Color
Silver
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Features
Hollow
Standards
RoHS, ICWM
Caster Temp. Range Available
No
Caster Brake Included
No
Caster Raceway
Double Ball
Caster Load Rating Range
Medium Duty
Caster Wheel Bearings
Precision Ball
System of Measurement
Metric
Replacement Wheel
Mfr. No. ALST 125/15K
Caster Core Material
Aluminum
Caster Stem Type
Hollow Kingpin
Caster Wheel/Tread Material
Softhane Polyurethane
Wheel Color
Green
Extended Lead
No
Caster Temp. Range
-25 Degrees To 70 Degrees C
Caster Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness
75 Shore A
Wheel/Tread Color
Silver
Caster Break Type
No Brake Included
Tread Shape
Standard
Caster Mounting Type
Hollow Kingpin
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Series
LKR Series
Load Capacity
350 kg
Includes Thread Guards
No
ESD Conductive
No
Tread Color
Green
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll
Wheel Hardness Rating
75 Shore A
Operating Temperature - Minimum
-5 Degrees F
Compatible Wheel Manufacturer Model Number
ALST 125/15K
Operating Temperature - Maximum
160 Degrees F
Load Capacity - Maximum
770 lb

Description

Bolt-Hole Caster, 1/2 in Bolt Hole Dia., 1/2 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 300 to 999 lb Load Rating Range, 770 lb Load Rating, 1 Number of Wheels, Ball, 6 in Mounting Height, 4 7/8 in Wheel Dia., 1 5/8 in Wheel Width, Polyurethane Wheel/Tread Material, 75 Shore A Wheel/Tread Hardness, Soft, Yes Non-Marking
