  11. Kingpin Swivel Caster, Rubber, 5 in, 330 lb, Blu
Zoro Select Kingpin Swivel Caster, Rubber, 5 in, 330 lb, Blu LER-POEV 126KA-SB - main

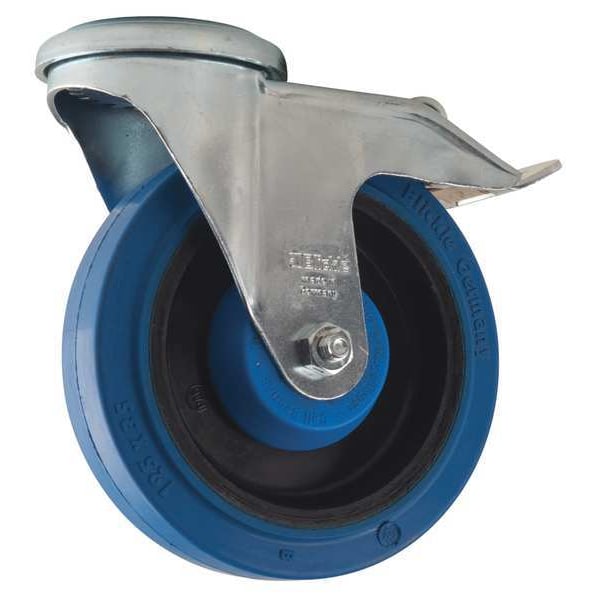

Kingpin Swivel Caster, Rubber, 5 in, 330 lb, Blu

  • Mfr # LER-POEV 126KA-SB

  • Zoro # G8488925

product price: $34.39
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
330 lb
Wheel Dia.
5 in
Wheel Width
1-9/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LER-POEV 126KA-SB
Zoro #
G8488925
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5 in
Wheel Width
1-9/16 in
Mounting Height
5 7/8 in
Mounting Bolt Dia.
1/2 in
Bolt Hole Dia.
1/2 in
Overall Height
5-7/8 in
Swivel Radius
4-1/16 in
Stem Dia.
1/2" Bolt Hole
Tire Thickness
7/16 in

Details

Item
Swivel Hollow Kingpin Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
330 lb
Wheel/Tread Material
Nylon
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Ball
Caster Brake Type
No Brake
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Nylon
Core Color
Black
Application
Retail, Industrial, Commercial
Features
Hollow
Standards
RoHS, ICWM
Includes
Thread Guards
Caster Brake Included
No
Caster Raceway
Double Ball
Replacement Wheel
Mfr. No. POEV 126/8K-SB-01
Caster Wheel/Tread Material
EasyRoll Elastic Solid Rubber
System of Measurement
Inch
Caster Wheel Bearings
Precision Ball
Caster Stem Type
Hollow Kingpin
Caster Core Material
Nylon
Caster Load Rating Range
Medium Duty
Caster Temp. Range Available
No
Wheel Color
Blue
Caster Temp. Range
-15 Degrees To 175 Degrees F
Extended Lead
No
Caster Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness
65 Shore A
Wheel/Tread Color
Black
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Series
LER Series
Tread Color
Blue
Load Capacity
330 lb
Caster Mounting Type
Hollow Kingpin
Caster Break Type
No Brake Included
Tread
Standard
Includes Thread Guards
No
Tread Shape
Standard
Load Capacity - Maximum
330 lb
Operating Temperature - Maximum
176 Degrees F
Compatible Wheel Manufacturer Model Number
POEV 126/8K-SB-FK
Operating Temperature - Minimum
-4 Degrees F
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll
Wheel Hardness Rating
65 Shore A

Description

Bolt-Hole Caster, 1/2 in Bolt Hole Dia., 1/2 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 300 to 999 lb Load Rating Range, 330 lb Load Rating, 1 Number of Wheels, Ball, 5 4/5 in Mounting Height, 4 7/8 in Wheel Dia., 1 1/2 in Wheel Width, Nylon Wheel/Tread Material, 65 Shore A Wheel/Tread Hardness, Soft, Yes Non-Marking
