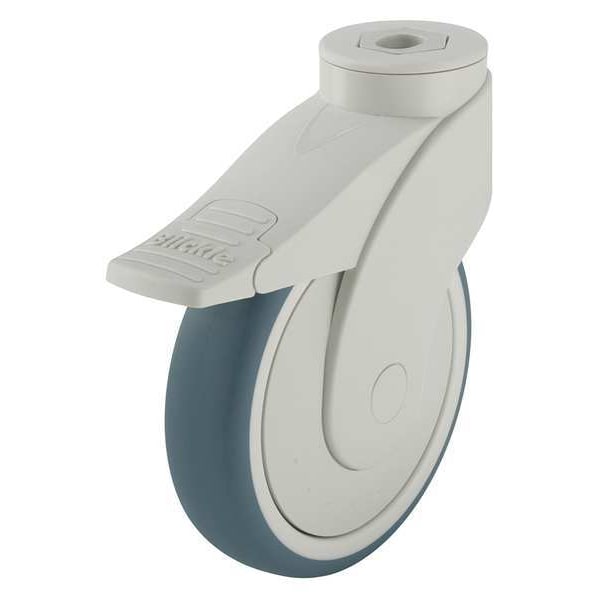

Kingpin Swivel Caster, Therm Rubber, 5 in., 240 lb.

  • Mfr # LWK-TPA 126KF-FI
  • Zoro # G7235164
product price:
$
38.55
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Brake
Load Rating
240 lb
Wheel Dia.
4 7/8 in
Wheel Width
1 1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LWK-TPA 126KF-FI
Zoro #
G7235164
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 7/8 in
Wheel Width
1 1/4 in
Mounting Height
6 1/5 in
Mounting Bolt Dia.
1/2 in
Bolt Hole Dia.
1/2 in
Overall Height
160 mm
Stem Dia.
1/2" Bolt Hole
Swivel Radius
102.5 mm
Tire Thickness
5/16 in
Fits Chest Size
Hollow

Details

Item
Bolt-Hole Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Brake
Load Rating
240 lb
Wheel/Tread Material
Rubber
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Ball
Caster Brake Type
Total Lock
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Nylon
Caster Frame Material
Nylon
Wheel Core Material
Plastic
Core Color
Gray
Application
Food Service, Medical and Institutional Equipment
Features
Hollow
Standards
DIN EN 12532
Includes
Thread Guards
Caster Wheel Bearings
Precision Ball
Caster Stem Type
Hollow Kingpin
Replacement Wheel
Mfr. No. TPA 126/8K-FK
Caster Raceway
Single Ball
Caster Core Material
Polypropylene
System of Measurement
Inch
Caster Load Rating Range
Light Duty
Caster Temp. Range Available
No
Caster Wheel/Tread Material
Thermoplastic Rubber
Wheel Color
Gray
Caster Brake Included
Yes
Extended Lead
No
Caster Swivel Lock Type
Total-Lock
Caster Temp. Range
-20 Degrees To 60 Degrees C
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness
85 Shore A
Wheel/Tread Color
Gray
Tread Color
Gray
Series
LWK Series
Caster Mounting Type
Hollow Kingpin
Caster Break Type
Stop Fix Brake (Total Lock)
Includes Thread Guards
Yes
Tread
Standard
Tread Shape
Standard
ESD Conductive
No
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Load Capacity
110 kg
Load Capacity - Maximum
240 lb
Wheel Hardness Rating
85 Shore A
Compatible Wheel Manufacturer Model Number
TPA 126/8K-FK
Operating Temperature - Minimum
-5 Degrees F
Operating Temperature - Maximum
140 Degrees F
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll

Description

Bolt-Hole Caster, 1/2 in Bolt Hole Dia., 1/2 in Mounting Bolt Dia., Nylon Caster Frame Material, Nylon Frame Finish, 0 to 299 lb Load Rating Range, 240 lb Load Rating, 1 Number of Wheels, Ball, 6 1/5 in Mounting Height, 4 7/8 in Wheel Dia., 1 1/4 in Wheel Width, Rubber Wheel/Tread Material, 85 Shore A Wheel/Tread Hardness, Soft, Yes Non-Marking
