  6. Kingpin Swivel Caster, Therm Rubber, 5 in, 265 lb

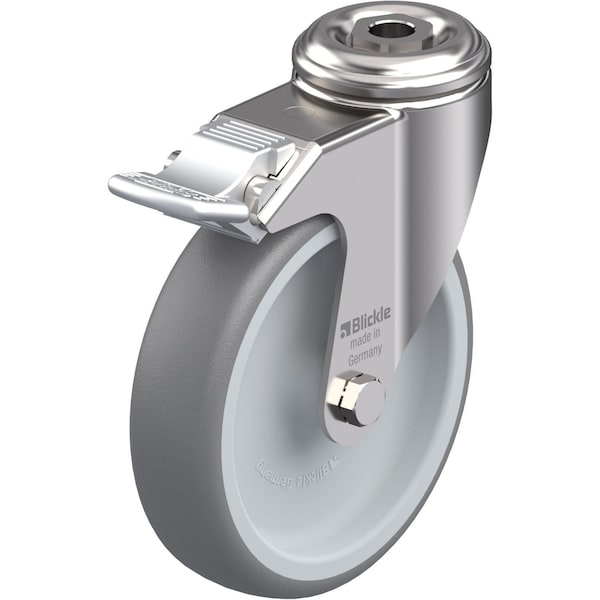

Zoro Select Kingpin Swivel Caster, Therm Rubber, 5 in, 265 lb LKRXA-TPA 126G-FI - main

Kingpin Swivel Caster, Therm Rubber, 5 in, 265 lb

  • Mfr # LKRXA-TPA 126G-FI

  • Zoro # G0493066

product price:  $50.39
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Brake
Load Rating
265 lb
Wheel Dia.
5 in
Wheel Width
1-1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LKRXA-TPA 126G-FI
Zoro #
G0493066
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5 in
Wheel Width
1-1/4 in
Mounting Height
6 3/16 in
Mounting Bolt Dia.
1/2 in
Bolt Hole Dia.
1/2 in
Overall Height
6-1/4 in
Swivel Radius
4-1/16 in
Stem Dia.
1/2" Bolt Hole
Tire Thickness
5/16 in

Details

Item
Swivel Hollow Kingpin Caster With Brake
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster With Brake
Load Rating
265 lb
Wheel/Tread Material
Rubber
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Plain
Caster Brake Type
Total Lock
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Stainless Steel
Caster Frame Material
Stainless Steel
Wheel Core Material
Polypropylene
Core Color
Gray
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Features
Corrosion Resistant, Hollow, Semi-Soft Tread
Standards
RoHS, ICWM
Includes
Stop-Fix Total-Lock Brake
Caster Core Material
Nylon
Caster Temp. Range Available
No
System of Measurement
Inch
Caster Wheel Bearings
Plain
Caster Stem Type
Hollow Kingpin
Replacement Wheel
Mfr. No. TPA 126/12XR
Caster Brake Included
Yes
Caster Raceway
Double Ball
Wheel Color
Gray
Caster Load Rating Range
Medium Duty
Caster Wheel/Tread Material
Thermoplastic Rubber
Caster Temp. Range
-4 Degrees To 140 Degrees F
Extended Lead
No
Caster Swivel Lock Type
Total-Lock
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness
85 Shore A
Wheel/Tread Color
Gray
ESD Conductive
No
Caster Break Type
Stop Fix Brake (Total Lock)
Series
LKRXA Series
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Load Capacity
265 lb
Includes Thread Guards
No
Tread Shape
Standard
Tread Color
Gray
Tread
Standard
Caster Mounting Type
Hollow Kingpin
Compatible Wheel Manufacturer Model Number
TPA 126/12XR
Operating Temperature - Minimum
-5 Degrees F
Operating Temperature - Maximum
140 Degrees F
Wheel Hardness Rating
85 Shore A
Load Capacity - Maximum
265 lb
Caster Features
Corrosion-Resistant

Description

Bolt-Hole Caster, 1/2 in Bolt Hole Dia., 1/2 in Mounting Bolt Dia., Stainless Steel Caster Frame Material, Stainless Steel Frame Finish, 0 to 299 lb Load Rating Range, 265 lb Load Rating, 1 Number of Wheels, Plain, 6 1/10 in Mounting Height, 4 7/8 in Wheel Dia., 1 1/4 in Wheel Width, Rubber Wheel/Tread Material, 85 Shore A Wheel/Tread Hardness, Soft, Yes Non-Marking
