  11. Kingpin Swivel Caster, Thrm Rubber, 4 in, 220 lb, Gry

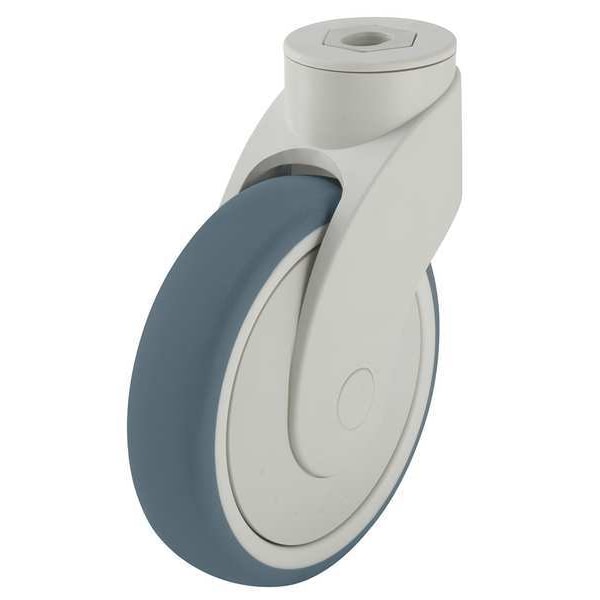

Zoro Select Kingpin Swivel Caster, Thrm Rubber, 4 in, 220 lb, Gry LWK-TPA 101KF - main

Kingpin Swivel Caster, Thrm Rubber, 4 in, 220 lb, Gry

  • Mfr # LWK-TPA 101KF

  • Zoro # G7181194

product price: $30.75
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
220 lb
Wheel Dia.
100 mm
Wheel Width
32 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LWK-TPA 101KF
Zoro #
G7181194
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
100 mm
Wheel Width
32 mm
Mounting Height
5 1/4 in
Mounting Bolt Dia.
M12
Overall Height
135 mm
Bolt Hole Dia.
1/2 in
Stem Dia.
1/2" Bolt Hole
Swivel Radius
88 mm
Tire Thickness
3/16 in

Details

Item
Swivel Hollow Kingpin Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
220 lb
Wheel/Tread Material
Rubber
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Ball
Caster Brake Type
No Brake
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Natural White
Caster Frame Material
Nylon
Wheel Core Material
Polypropylene
Core Color
Gray
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Features
Hollow
Standards
RoHS, ICWM
Includes
Thread Guards
Caster Raceway
Single Ball
Replacement Wheel
Mfr. No. TPA 101/8K-FK
Caster Wheel/Tread Material
Thermoplastic Rubber
Caster Core Material
Polypropylene
Wheel Color
Gray
Caster Brake Included
No
Caster Load Rating Range
Light Duty
Caster Temp. Range Available
No
System of Measurement
Metric
Caster Stem Type
Hollow Kingpin
Caster Wheel Bearings
Precision Ball
Caster Swivel Lock Type
No Lock Included
Caster Temp. Range
-20 Degrees To 60 Degrees C
Extended Lead
No
Swivel Raceway Type
Double-Sealed Grooved Ball Bearing
Wheel/Tread Hardness
85 Shore A
Wheel/Tread Color
Gray
Series
LWK Series
Tread Color
Gray
Caster Break Type
No Brake Included
Tread
Standard
Load Capacity
100 kg
Caster Mounting Type
Hollow Kingpin
Tread Shape
Standard
Includes Thread Guards
Yes
ESD Conductive
No
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
220 lb
Compatible Wheel Manufacturer Model Number
TPA 101/8K-FK
Operating Temperature - Maximum
140 Degrees F
Operating Temperature - Minimum
-5 Degrees F
Wheel Hardness Rating
85 Shore A
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll

Description

Bolt-Hole Caster, 1/2 in Bolt Hole Dia., 1/2 in Mounting Bolt Dia., Nylon Caster Frame Material, Zinc Plated Frame Finish, 0 to 299 lb Load Rating Range, 220 lb Load Rating, 1 Number of Wheels, Ball, 5 1/5 in Mounting Height, 3 7/8 in Wheel Dia., 1 1/4 in Wheel Width, Rubber Wheel/Tread Material, 85 Shore A Wheel/Tread Hardness, Soft, Yes Non-Marking
