  6. Kingpin Swivel Caster, Thrm Rubber, 5 in, 264 lb.Gry

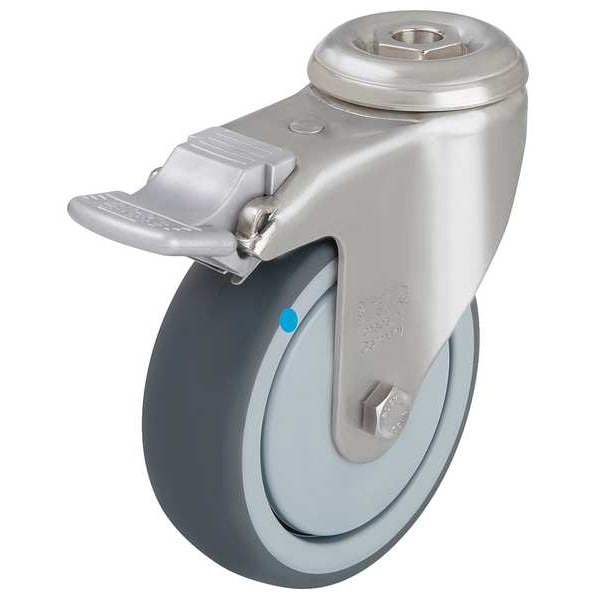

Zoro Select Kingpin Swivel Caster, Thrm Rubber, 5 in, 264 lb.Gry LKRXA-TPA 126KFD - main

Kingpin Swivel Caster, Thrm Rubber, 5 in, 264 lb.Gry

  • Mfr # LKRXA-TPA 126KFD

  • Zoro # G8488961

product price:  $41.85
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
265 lb
Wheel Dia.
5 in
Wheel Width
1-1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LKRXA-TPA 126KFD
Zoro #
G8488961
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5 in
Wheel Width
1-1/4 in
Mounting Height
6 3/16 in
Mounting Bolt Dia.
1/2 in
Stem Dia.
1/2" Bolt Hole
Overall Height
6-1/4 in
Bolt Hole Dia.
1/2 in
Swivel Radius
4-1/16 in
Tire Thickness
5/16 in

Details

Item
Swivel Hollow Kingpin Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
265 lb
Wheel/Tread Material
Rubber
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Ball
Caster Brake Type
No Brake
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Stainless Steel
Caster Frame Material
Stainless Steel
Wheel Core Material
Polypropylene
Core Color
Gray
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Features
Corrosion Resistant, Hollow, Semi-Soft Tread
Standards
RoHS, ICWM
Includes
Thread Guards
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness
85 Shore A
Wheel/Tread Color
Gray
Extended Lead
No
Caster Wheel Bearings
Precision Ball
Caster Load Rating Range
Medium Duty
System of Measurement
Inch
Tread
Standard
Series
LKRXA Series
Caster Mounting Type
Hollow Kingpin
ESD Conductive
No
Caster Stem Type
Hollow Kingpin
Wheel Color
Gray
Load Capacity
265 lb
Caster Swivel Lock Type
No Lock Included
Tread Color
Gray
Caster Wheel/Tread Material
Thermoplastic Rubber
Caster Break Type
No Brake Included
Includes Thread Guards
Yes
Caster Brake Included
No
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Caster Core Material
Polypropylene
Caster Temp. Range
-4 Degrees To 140 Degrees F
Caster Temp. Range Available
No
Replacement Wheel
Mfr. No. TPA 126/8KD-FK
Caster Raceway
Double Ball
Tread Shape
Standard
Load Capacity - Maximum
265 lb
Operating Temperature - Minimum
-5 Degrees F
Compatible Wheel Manufacturer Model Number
TPA 126/8KD-FK
Caster Features
Corrosion-Resistant
Wheel Hardness Rating
85 Shore A
Operating Temperature - Maximum
140 Degrees F

Description

Bolt-Hole Caster, 1/2 in Bolt Hole Dia., 1/2 in Mounting Bolt Dia., Stainless Steel Caster Frame Material, Stainless Steel Frame Finish, 0 to 299 lb Load Rating Range, 265 lb Load Rating, 1 Number of Wheels, Ball, 6 1/10 in Mounting Height, 4 7/8 in Wheel Dia., 1 1/4 in Wheel Width, Rubber Wheel/Tread Material, 85 Shore A Wheel/Tread Hardness, Soft, Yes Non-Marking
