  11. Kingpin Swivl Cstr, Nylon, 3 in, 165 lb, Blk

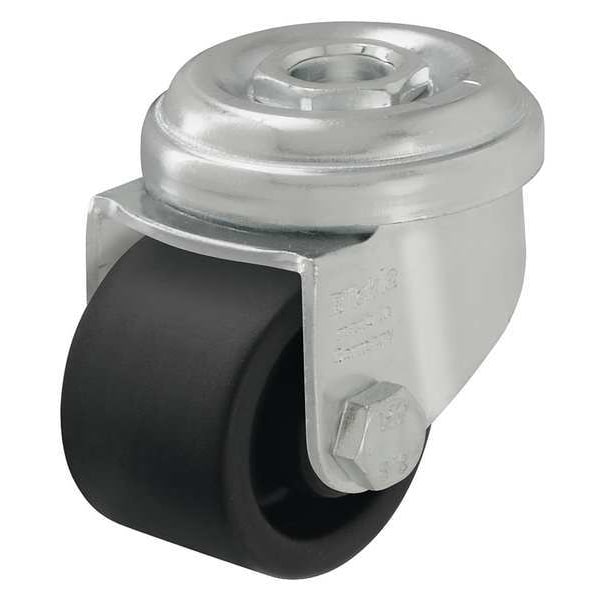

Zoro Select Kingpin Swivl Cstr, Nylon, 3 in, 165 lb, Blk LRA-POA 75G - main

Kingpin Swivl Cstr, Nylon, 3 in, 165 lb, Blk

  • Mfr # LRA-POA 75G

  • Zoro # G9081755

product price: $7.49
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
165 lb
Wheel Dia.
3 in
Wheel Width
1 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LRA-POA 75G
Zoro #
G9081755
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
3 in
Wheel Width
1 in
Mounting Height
3 7/8 in
Mounting Bolt Dia.
3/8 in
Bolt Hole Dia.
7/16 in
Overall Height
3-7/8 in
Stem Dia.
7/16" Bolt Hole
Swivel Radius
2-5/8 in

Details

Item
Swivel Hollow Kingpin Caster
Caster Sub-Type
Swivel
Caster Product Group
Swivel Caster
Load Rating
165 lb
Wheel/Tread Material
Nylon
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Plain
Caster Brake Type
No Brake
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Wheel Core Material
Nylon
Core Color
Black
Application
Retail, Industrial, Commercial
Features
Hollow
Standards
RoHS, ICWM
Caster Temp. Range Available
No
Replacement Wheel
Mfr. No. POA 75/8G
Caster Stem Type
Hollow Kingpin
Caster Core Material
Nylon
Wheel Color
Black
Caster Raceway
Double Ball
Caster Wheel/Tread Material
Nylon
Caster Load Rating Range
Light Duty
Caster Brake Included
No
Caster Wheel Bearings
Plain
System of Measurement
Inch
Extended Lead
No
Caster Swivel Lock Type
No Lock Included
Caster Temp. Range
-15 Degrees To 175 Degrees F
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness
70 Shore D
Wheel/Tread Color
Black
Includes Thread Guards
No
Tread Color
Black
Tread Shape
Standard
ESD Conductive
No
Load Capacity
165 lb
Caster Mounting Type
Hollow Kingpin
Series
LRA Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Caster Break Type
No Brake Included
Operating Temperature - Minimum
-15 Degrees F
Compatible Wheel Manufacturer Model Number
POA 75/8G
Load Capacity - Maximum
165 lb
Wheel Hardness Rating
70 Shore D
Caster Features
Corrosion-Resistant, Low-Profile, Maintenance-Free
Operating Temperature - Maximum
175 Degrees F

Description

Bolt-Hole Caster, 7/16 in Bolt Hole Dia., 7/16 in Mounting Bolt Dia., Steel Caster Frame Material, Zinc Plated Frame Finish, 0 to 299 lb Load Rating Range, 165 lb Load Rating, 1 Number of Wheels, Plain, 3 4/5 in Mounting Height, 3 in Wheel Dia., 3/4 in Wheel Width, Nylon Wheel/Tread Material, 70 Shore D Wheel/Tread Hardness, Hard, Yes Non-Marking
