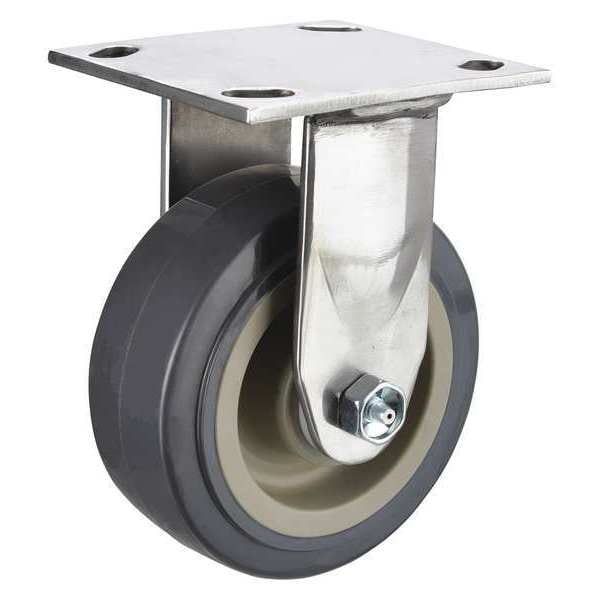

Zoro Select Kingpinless Rgd Caster, Poly, 5 in, 900 lb. P21RX-UP050D-14 - main

Kingpinless Rgd Caster, Poly, 5 in, 900 lb.

  • Mfr # P21RX-UP050D-14

  • Zoro # G4574385

product price:  $53.19
/ea

Key Features

Core Color
Gray
Caster Brake Included
No
Caster Plate Hole Pattern
B
Extended Lead
No
Caster Sub-Type
Rigid
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21RX-UP050D-14
Zoro #
G4574385
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Overall Height
6-1/2in
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Height
6 1/2 in
Mounting Plate Thickness
1/4in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
3 in
Bolt Hole Spacing - Length
2.625 in
Mounting Plate Width
4 in
Outside Slot Spacing - Width
3 in
For Axle Dia.
1/2 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in

Details

Core Color
Gray
Item
Rigid Caster
Caster Brake Included
No
Caster Plate Hole Pattern
B
Extended Lead
No
Caster Sub-Type
Rigid
Caster Temp. Range Available
Yes
Thread Guards
No
Caster Frame Material
Stainless Steel
Non-Marking
Yes
Inside Bolt Hole Spacing
3 in x 3 in
Frame Finish
Polished
Number of Wheels
1
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Load Rating
750 lb
Wheel Color
Gray
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Standards
RoHS, ICWM, NSF
Replacement Wheel
Mfr. No. P-UP-050x020/050DX
Caster Brake Type
No Brake
Wheel Bearing Type
Delrin
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Hard
Load Rating Range
Light-Medium Duty
Includes Thread Guards
No
Wheel Core Material
Polypropylene
Tread Shape
Standard
Number of Mounting Holes
4
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Gray
System of Measurement
Inch
Series
P21X Series
Tread Color
Gray
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Caster Mounting Type
Plate
Load Capacity
750 lb
Tread
Standard
Load Capacity - Maximum
750 lb
Wheel Hardness Rating
55 Shore D
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Wheel Bearing Material
Delrin
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F

Description

Rigid, Plate Caster, Load Rating 750 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
