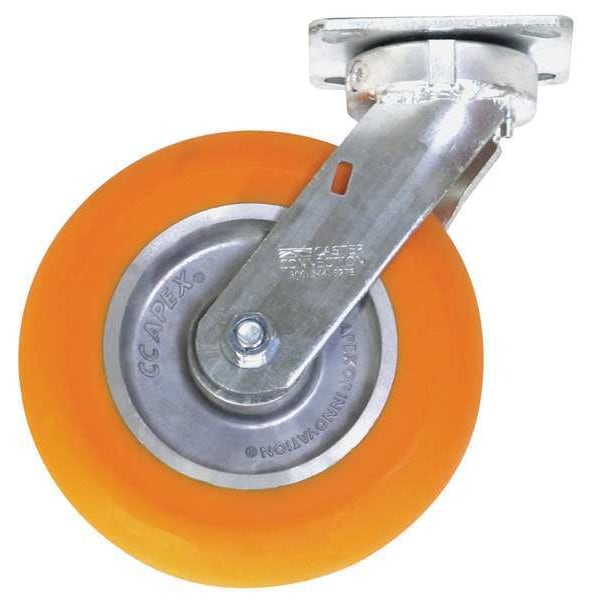

Zoro Select Kingpinless Swivel Plate Caster, Polyurethane, 1200 lb CDP-G-14 - main

Kingpinless Swivel Plate Caster, Polyurethane, 1200 lb

  • Mfr # CDP-G-14

  • Zoro # G8320925

product price:  $127.99
/ea
Free Shipping & Returns

Key Features

Swivel Radius
7 1/2 in
Caster Temp. Range Available
No
Core Color
Silver
Wheel Dia.
8 in
Caster Sub-Type
Swivel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
CDP-G-14
Zoro #
G8320925
UPC #
-
Country of Origin
United States

Dimensions

Swivel Radius
7 1/2 in
Wheel Dia.
8 in
Overall Height
9-1/2in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
9 1/2 in
Inside Slot Spacing - Length
3 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Thickness
1/4 in
Mounting Plate Width
4 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Width
2.625 in

Details

Caster Temp. Range Available
No
Core Color
Silver
Caster Sub-Type
Swivel
Load Rating
1200 lb
Extended Lead
Yes
Frame Finish
Zinc Plated
Item
Plate Caster
Outside Bolt Hole Spacing
3 in x 3 in
Wheel Color
Orange
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Replacement Wheel
Mfr. No. CDP-G-4
Thread Guards
No
Caster Brake Included
No
Features
Floor Protective, Noise Reduction, Push/Pull Force Reduction
Caster Plate Hole Pattern
B
Application
Commercial Laundries, Educational Institutions, Factory Floor Towlines, Green Houses, Healthcare Facilities, Institutional Kitchens, Manufacturing, Material Handling, Metal Fabrication, Waste Removal
Number of Wheels
1
Caster Frame Material
Aluminum
Non-Marking
Yes
Caster Brake Type
No Brake
Wheel Bearing Type
Ball
Wheel Core Material
Aluminum
Number of Mounting Holes
4
Includes Thread Guards
No
Load Rating Range
1000 to 2999 lb
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Firm
Swivel Raceway Type
Roller
Swivel Construction
Kingpinless
Tread Shape
Donut
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Orange
Compatible With
CDP-G-4
Wheel Hardness Rating
87 Shore A
Load Capacity - Maximum
1,200 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Caster Features
Debris-Resistant, Quiet-Roll
For Surface Type
Asphalt, Ceramic, Grease, Metal Scrap, Oil, Rubber, Steel, Tile, Vinyl, Wood

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
