  6. Kingpinless Swivel Plate Caster, Polyurethane, 1200 lb

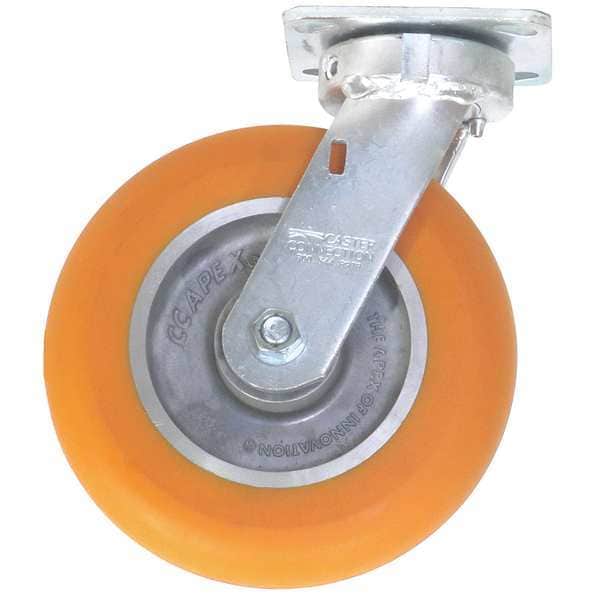

Zoro Select Kingpinless Swivel Plate Caster, Polyurethane, 1200 lb CDP-G-17 - main

Kingpinless Swivel Plate Caster, Polyurethane, 1200 lb

  • Mfr # CDP-G-17

  • Zoro # G7844697

product price:  $138.99
/ea
Free Shipping & Returns

Key Features

Frame Finish
Zinc Plated
Outside Bolt Hole Spacing
3 in x 3 in
Swivel Radius
6 1/8 in
Caster Plate Hole Pattern
B
Wheel Color
Orange
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
CDP-G-17
Zoro #
G7844697
UPC #
-
Country of Origin
United States

Dimensions

Swivel Radius
6 1/8 in
Overall Height
9-1/2in
Wheel Dia.
8 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
9 1/2 in
Mounting Plate Length
4 1/2 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Width
4 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Thickness
1/4 in

Details

Frame Finish
Zinc Plated
Outside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Wheel Color
Orange
Features
Floor Protective, Noise Reduction, Push/Pull Force Reduction
Caster Frame Material
Aluminum
Application
Commercial Laundries, Educational Institutions, Factory Floor Towlines, Green Houses, Healthcare Facilities, Institutional Kitchens, Manufacturing, Material Handling, Metal Fabrication, Waste Removal
Item
Plate Caster
Caster Sub-Type
Swivel
Thread Guards
No
Replacement Wheel
Mfr. No. CDP-G-4
Number of Wheels
1
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Extended Lead
No
Caster Temp. Range Available
No
Load Rating
1200 lb
Core Color
Silver
Caster Brake Included
No
Non-Marking
Yes
Caster Brake Type
No Brake
Load Rating Range
1000 to 2999 lb
Wheel/Tread Hardness Rating
Firm
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Ball
Swivel Construction
Kingpinless
Tread Shape
Donut
Number of Mounting Holes
4
Swivel Raceway Type
Roller
Includes Thread Guards
No
Wheel Core Material
Aluminum
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Orange
Load Capacity - Maximum
1,200 lb
Compatible With
CDP-G-4
Wheel Hardness Rating
87 Shore A
For Surface Type
Asphalt, Ceramic, Grease, Metal Scrap, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Caster Features
Debris-Resistant, Quiet-Roll

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
