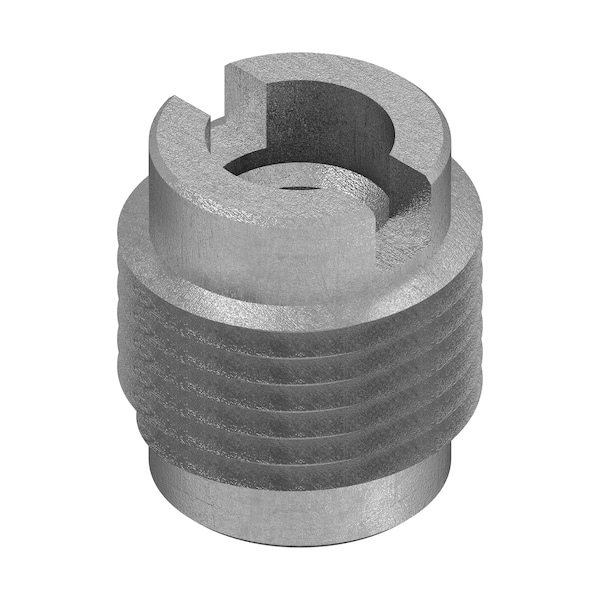

Knife Thread Insert, M6-1.00 Int Thrd Sz, 12.7 mm L, 9.525 mm Dia., 18-8 SS, Plain, 10 PK
- Mfr # 400-M6-CR-PK10
- Zoro # G409228354
CAD Available
product price:Â
$
22.99
/pk of 10, $2.30/ea
Key Features
CAD Drawing
Insert Diameter
9.525 mm
Material
18-8 Stainless Steel
Overall Length
12.7 mm
Finish
Plain
Material Grade/Class
18-8
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 400-M6-CR-PK10
- Zoro #
- G409228354
- UPC #
- 847554011102
- Country of Origin
- Taiwan, Province of China
Dimensions
- Internal Thread Size
- M6-1.00
- Insert Diameter
- 9.525 mm
- Overall Length
- 12.7 mm
- Drill Bit Size
- 25/64 in
- Minimum Material Thickness
- 14.91 mm
- Drive Size
- 25/64 in
- Minimum Installation Depth
- 13 31/64 mm
- Maximum Hole Diameter
- 9.931 mm
- Wire Rope Length
- 12.7 mm
- Length
- 12.7 mm
- Hole Diameter - Maximum
- 9.93 mm
Description
Knife-Thread Insert, System of Measurement Metric, Insert Diameter 9.53 mm, Overall Length 12.7 mm, Internal Thread Size M6x1.00, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Material Grade/Class 18-8, Finish Plain, Drive Type Slotted, Drill Bit Size 25/64 in, Compatible Material Wood, Minimum Material Thickness 14.91 mm, Maximum Hole Diameter 9.931 mm, Compatible Manufacturer Model Number DT-M6, Installation Method Drive Tool, Screwdriver
