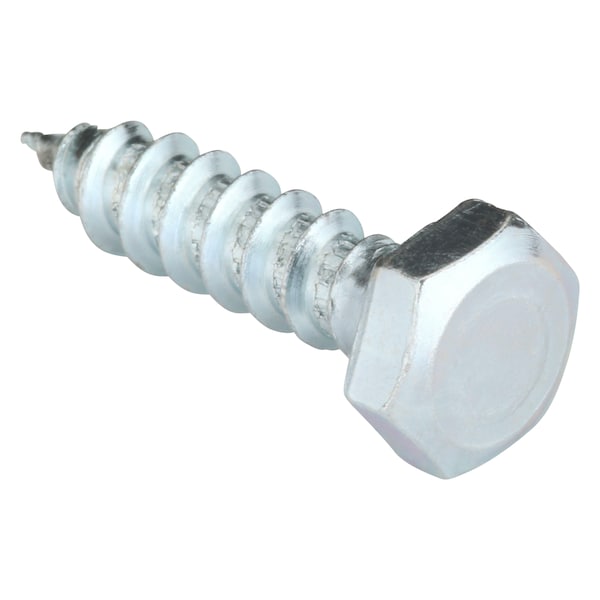

Lag Screw, 1/4 in, 1 in, Steel, Zinc Plated Hex External Hex Drive, 100 PK
Mfr # U08280.025.0100
Zoro # G1905233
CAD Available
product price:Â $4.99
/pk 100, $0.05/eaKey Features
External Hex Drive
Grade 2 Material Grade/Class
CAD Drawing
System of Measurement
Inch
Drive Size
7/16 in
Material
Steel
Finish
Zinc Plated
Thread Style
Partially Threaded
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
U08280.025.0100
Zoro #
G1905233
UPC #
-
Country of Origin
Multiple
Dimensions
Screw Size
1/4 in
Fastener Length
1 in
Drive Size
7/16 in
Hex Size
7/16 in
Thread Size
1/4"-10
Head Width
0.26 in
Head Height
0.172 in
Maximum Head Width
17/64 in
Maximum Head Height
11/64 in
Minimum Head Height
5/32 in
Description
Hex Head Lag Screw, Material Steel, Finish Zinc-Plated, Screw Size 1/4 in, Fastener Length 1 in, Threads per Inch 10, Thread Style Fully Threaded, Minimum Thread Length Not Applicable, Dimensional Standards ASME B18.2.1, Pack Size Small, System of Measurement Inch, Drive External Hex, Drive Size 7/16 in, Head Height 0.172 in, Head Style Hex, Head Width 0.26 in, Package Quantity 100
