  11. Leveling Bolt Hole Caster, 1-3/4" Wheel dia.

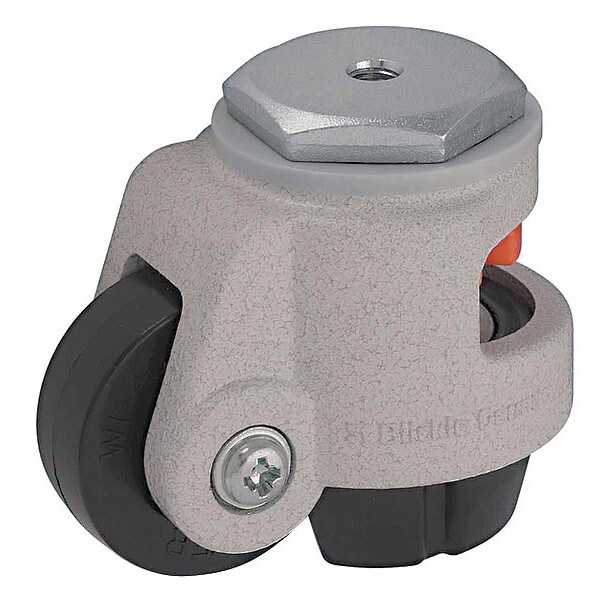

Zoro Select Leveling Bolt Hole Caster, 1-3/4" Wheel dia. HRIG-POA 45G - main

Leveling Bolt Hole Caster, 1-3/4" Wheel dia.

  • Mfr # HRIG-POA 45G

  • Zoro # G1626202

product price: $49.39
/ea

Key Features

Caster Sub-Type
Swivel
Caster Product Group
Leveling Caster
Load Rating
395 lb
Wheel Dia.
45 mm
Wheel Width
18 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HRIG-POA 45G
Zoro #
G1626202
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
45 mm
Wheel Width
18 mm
Mounting Height
2 13/16 in
Mounting Bolt Dia.
M8
Plate Thickness
1/4"
Swivel Radius
54.5 mm
Caster Thread Size
M8
Overall Height
72-80 mm
Plate Size
1-9/16" x 1-9/16"
Maximum Leveling Height
80 mm
Caster Stem Size
M8 x 12
Thread Size
M8
Retracted Height
72 mm

Details

Item
Leveling Caster
Caster Sub-Type
Swivel
Caster Product Group
Leveling Caster
Load Rating
395 lb
Wheel/Tread Material
Nylon
Wheel Bearing Type
Plain
Inside Bolt Hole Spacing
1 in x 1 in
Outside Bolt Hole Spacing
1 in x 1 in
Caster Brake Type
Side Brake
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Powder Coated
Caster Frame Material
Aluminum
Wheel Core Material
Nylon
Core Color
Black
Application
Used For Leveling Applications
Features
Low-Profile, Stabilizing
Standards
RoHS, ICWM
Includes
Leveling Foot
Caster Mounting Type
Bolt Hole
Caster Brake Included
No
Caster Temp. Range Available
Yes
Tread
Standard
Wheel Color
Black
Caster Wheel/Tread Material
Nylon
Caster Plate Hole Pattern
H
Caster Adjustment
Thumbwheel
Extended Lead
No
Caster Swivel Lock Type
No Lock Included
Frame Material
Die-Cast Aluminum
Caster Wheel Bearings
Plain
Foot/Pad Material
Rubber
Caster Raceway
Precision Ball
System of Measurement
Metric
Caster Load Rating Range
Heavy Duty
Caster Stem Type
Threaded Bolt Hole
Caster Temp. Range
-25 Degrees To 80 Degrees C
Tread Color
Black
Operating Position
Rear
Caster Core Material
Nylon
Swivel Raceway Type
Sealed Ball Bearing
Operating Temperature Range
-20 Degrees to 180 Degrees F
Adjustment Style
Thumbwheel
Caster Break Type
Integrated Truck Lock
Series
HRIG Series
Load Capacity
180 kg
Includes Thread Guards
No
Wheel/Tread Hardness
70 Shore D
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Shape
Standard
Load Capacity - Maximum
395 lb
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Stem Caster, Swivel Caster with Leveling Pad, 395 lb Load Rating, 300 to 999 lb, 1 13/16 in Wheel Dia., 3/4 in Wheel Width, Nylon Wheel/Tread Material, 2 13/16 in Mounting Height, Plain, M8 x 12 Caster Stem Size, Threaded Bolt Hole, Aluminum Caster Frame Material, Powder Coated Frame Finish, Yes Non-Marking, 1 Number of Wheels
