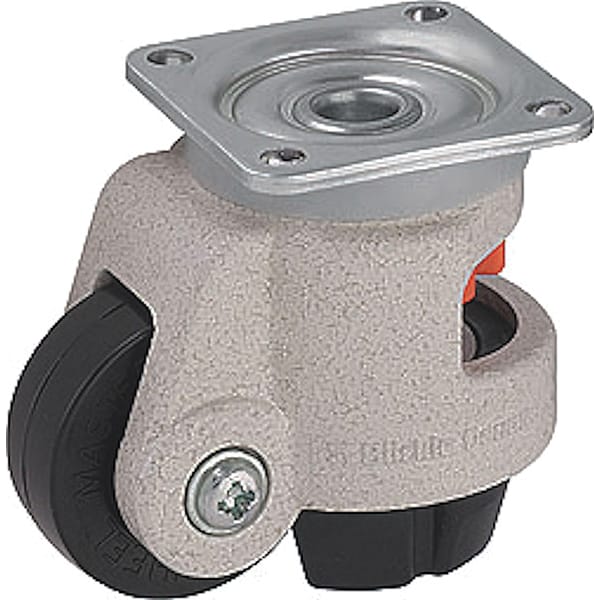

Leveling Caster, 1-3/4" Wheel dia.

original price: $55.29
14% off
new price: $47.25
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Heavy Duty
  • Caster Sub-Type Swivel
  • Caster Wheel/Tread Material Nylon
  • Load Rating 395 lb
See all product information

Product Information

Dimensions

Overall Height 72-80 mm
Wheel Dia. 45 mm
Wheel Width 18 mm
Mounting Bolt Dia. M6
Caster Thread Size 1/2"-13
Plate Size 2-3/16" x 2-3/16"
Mounting Height 2 13/16 in
Maximum Leveling Height 80 mm
Mounting Plate Size 2-11/64 in x 2-11/64 in
Swivel Radius 54.5 mm
Caster Plate Size 55 mm x 55 mm
Retracted Height 72 mm

Details

Caster Brake Included No
Caster Load Rating Range Heavy Duty
Caster Sub-Type Swivel
Caster Wheel/Tread Material Nylon
Load Rating 395 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Item Leveling Caster
Caster Core Material Nylon
Caster Plate Hole Pattern D
Caster Temp. Range -25 Degrees To 80 Degrees C
Caster Adjustment Thumbwheel
System of Measurement Metric
Standards RoHS, ICWM
Non-Marking Yes
Features Low-Profile, Stabilizing
Wheel Color Black
Foot/Pad Material Rubber
Outside Bolt Hole Spacing 42 mm x 42 mm
Frame Material Die-cast Aluminum
Caster Brake Type Leveling Pad
Frame Finish Powder Coated
Operating Position Rear
Includes Leveling Foot
Plate Thickness 1/8"
Caster Wheel Bearings Plain
Core Color Black
Inside Bolt Hole Spacing 42 mm x 42 mm
Plate Caster Bolt Hole Pattern D
Caster Raceway Precision Ball
Caster Mounting Type Plate
Caster Temp. Range Available Yes
Tread Standard
Caster Product Group Leveling Caster
Tread Color Black
Application Used For Leveling Applications
Tread Shape Standard
Caster Frame Material Aluminum
Adjustment Style Thumbwheel
Includes Thread Guards No
Mounting Plate Bolt Hole Pattern D
Wheel Core Material Nylon
Wheel/Tread Hardness Rating Hard
Wheel/Tread Material Nylon
Operating Temperature Range -20 Degrees to 180 Degrees F
Swivel Construction Kingpin
Wheel/Tread Hardness 70 Shore D
Wheel Bearing Type Plain
Swivel Raceway Type Sealed Ball Bearing
Number of Mounting Holes 4
Caster Swivel Lock Type No Lock Included
Caster Plate Thickness 3.5 mm
Extended Lead No
Caster Break Type Integrated Truck Lock
ESD Conductive No
Series HRP Series
Resistant To High Chemical Resistance To Many Aggressive Substances
Load Capacity 180 kg

Description

Caster Mounting Type Plate, Load Rating Range 300 to 999 lb, Load Rating 395 lb, Wheel Dia. 1 3/4 in, Wheel Width 3/4 in, Inside Bolt Hole Spacing 1-5/8 in x 1-5/8 in, Wheel/Tread Material Nylon, Caster Brake Type Leveling Pad, Core Color Black, Wheel Core Material Nylon, Frame Finish Powder Coated, Includes Leveling Foot, General Purpose Leveling Plate Caster, Mounting Bolt Dia. 1/4 in, Outside Bolt Hole Spacing 1-5/8 in x 1-5/8 in, Swivel Raceway Type Precision Ball, Standards DIN EN 12530
