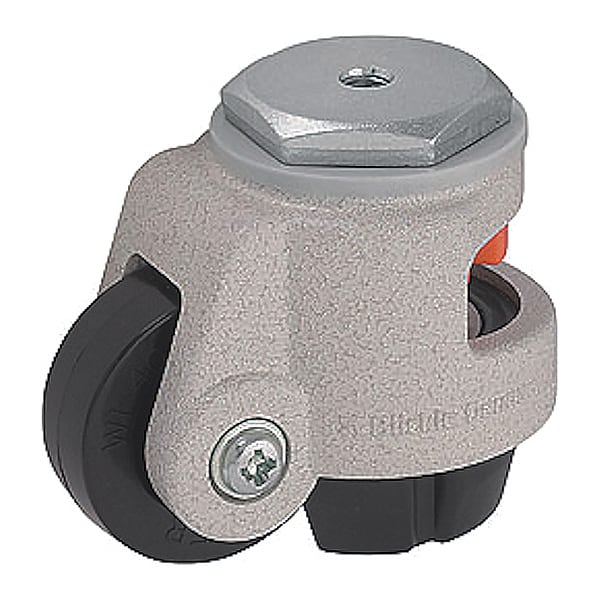

Leveling Caster, 1100lb. Load, Black Wheel

  • Mfr # HRIG-POA 63G
  • Zoro # G6305262
product price:
$
95.69
/ea

Key Features

Caster Stem Type
Threaded Bolt Hole
Tread Shape
Standard
Wheel Width
1 1/8 in
Mounting Height
4 1/8 in
Load Rating
1100 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HRIG-POA 63G
Zoro #
G6305262
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
1 1/8 in
Mounting Height
4 1/8 in
Thread Size
M12
Caster Thread Size
M12
Mounting Bolt Dia.
M12
Overall Height
4 3/32 in
Wheel Dia.
2 1/2 in
Caster Stem Size
M12 x 15
Maximum Leveling Height
4 1/2 in
Swivel Radius
77.5 mm
Retracted Height
104 mm
Fits Chest Size
Push/Pull Force Reduction

Details

Item
Stem Caster
Caster Stem Type
Threaded Bolt Hole
Tread Shape
Standard
Load Rating
1100 lb
Wheel/Tread Material
Nylon
Application
Used For Leveling Applications
Non-Marking
Yes
Caster Brake Type
Side Brake
Caster Frame Material
Aluminum
Wheel Bearing Type
Plain
Number of Wheels
1
Caster Temp. Range Available
Yes
Caster Load Rating Range
Heavy Duty
Caster Brake Included
No
Frame Finish
Powder Coated
System of Measurement
Inch
Caster Raceway
Precision Ball
Caster Plate Hole Pattern
H
Features
Push/Pull Force Reduction
Operating Position
Rear
Caster Mounting Type
Bolt Hole
Caster Wheel/Tread Material
Nylon
Caster Core Material
Nylon
Frame Material
Die-cast Aluminum
Wheel Color
Black
Caster Temp. Range
-25 Degrees To 80 Degrees C
Caster Adjustment
Thumbwheel
Core Color
Black
Caster Wheel Bearings
Plain
Plate Caster Bolt Hole Pattern
H
Standards
DIN EN, ANSI ICWM, ISO 9001
Foot/Pad Material
Rubber
Caster Sub-Type
Swivel
Includes
Leveling Foot
Tread Color
Black
Tread
Standard
Caster Product Group
Leveling Caster
Swivel Raceway Type
Single Ball
Operating Temperature Range
-20 Degrees to 180 Degrees F
Wheel Core Material
Nylon
Adjustment Style
Thumbwheel
Caster Swivel Lock Type
No Lock Included
Extended Lead
No
Load Capacity
500 kg
Wheel/Tread Hardness
70 Shore D
Includes Thread Guards
No
ESD Conductive
No
Series
HRIG Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Break Type
Integrated Truck Lock
Load Capacity - Maximum
1,100 lb
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Stem Caster, Swivel Caster with Leveling Pad, 1100 lb Load Rating, 1000 to 2999 lb, 2 1/2 in Wheel Dia., 1 1/8 in Wheel Width, Nylon Wheel/Tread Material, 4 1/8 in Mounting Height, Plain, M12 x 15 Caster Stem Size, Threaded Bolt Hole, Aluminum Caster Frame Material, Powder Coated Frame Finish, Yes Non-Marking, 1 Number of Wheels
