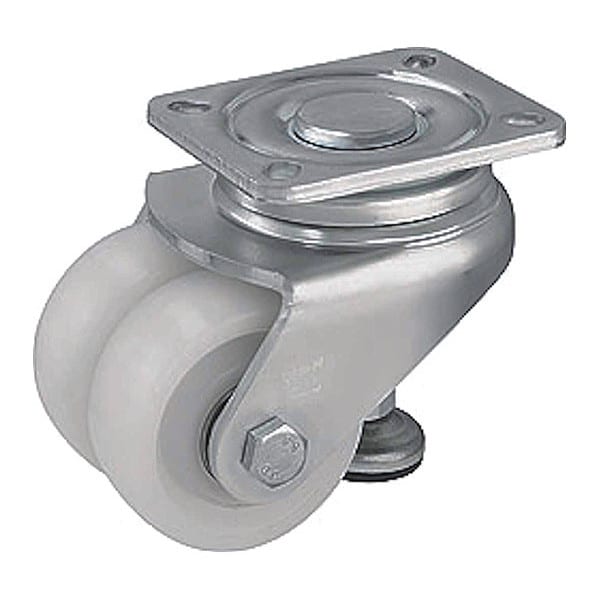

Leveling Caster, 1325 lb. Load, Swivel

  • Mfr # HRLHD-SPO 75K

  • Zoro # G9463577

product price:
$
159.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
Leveling Pad
Wheel Dia.
3 in
Wheel Width
1 1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HRLHD-SPO 75K
Zoro #
G9463577
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
3 in
Wheel Width
1 1/4 in
Mounting Plate Size
85 mm x 100 mm
Mounting Bolt Dia.
5/16 in
Caster Thread Size
M8
Overall Height
4-1/4"
Maximum Leveling Height
4 7/8 in
Mounting Height
4 1/4 in
Swivel Radius
92.5 mm
Retracted Height
108 mm
Mounting Plate Length
3 3/8 in
Overall Wheel Width
1 1/4 in
Bolt Hole Spacing - Width
2.375 in
For Axle Dia.
10 mm
Mounting Plate Thickness
1/4 in
Bolt Hole Spacing - Length
3.156 in

Details

Item
Plate Caster
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
Leveling Pad
Load Rating
1320 lb
Caster Mounting Type
Plate
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Outside Bolt Hole Spacing
2-3/8 in x 3-1/8 in
Inside Bolt Hole Spacing
2-3/8 in x 3-1/8 in
Caster Temp. Range Available
Yes
Operating Position
Rear
Caster Brake Included
No
Standards
DIN EN 12530
Frame Finish
Zinc Plated
Features
Anti-Vibration, One Moving and One Set
Caster Stem Type
No Stem/Plate Included
Foot/Pad Material
Rubber
Core Color
White
Caster Plate Hole Pattern
D
Caster Sub-Type
Swivel
Wheel Color
White
Non-Marking
Yes
Application
Used For Leveling Applications
Includes
Leveling Foot
Tread Color
White
Tread
Standard
Number of Wheels
2
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Hard
Operating Temperature Range
-20 Degrees to 180 Degrees F
Load Rating Range
Medium-Duty
Swivel Raceway Type
Double Ball
Wheel Bearing Type
Ball
Swivel Construction
Kingpin
Wheel Core Material
Nylon
Adjustment Style
Nut
Extended Lead
No
Series
HRLHD Series
Load Capacity
600 kg
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Capacity - Maximum
1,325 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant

Description

Swivel, Plate Caster, Load Rating 1320 lb, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 2, Caster Brake Type Leveling Pad, Tread Shape Standard
