  11. Leveling Caster, 2200 lb.Load, Black Wheel
Zoro Select Leveling Caster, 2200 lb.Load, Black Wheel HRSP-POA 72G - main

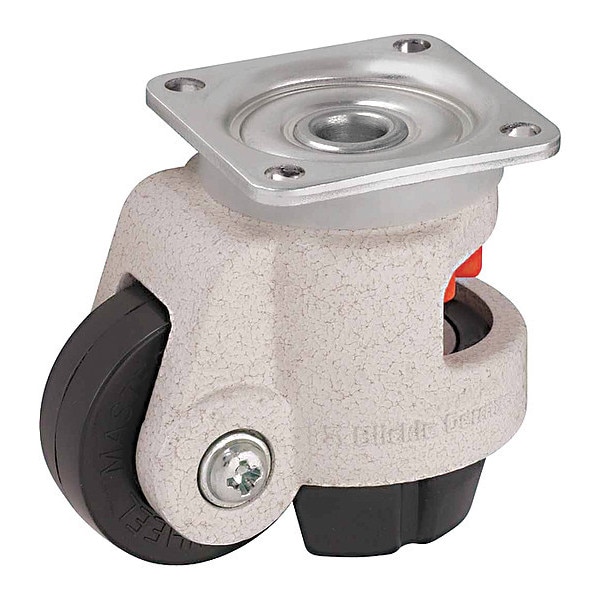

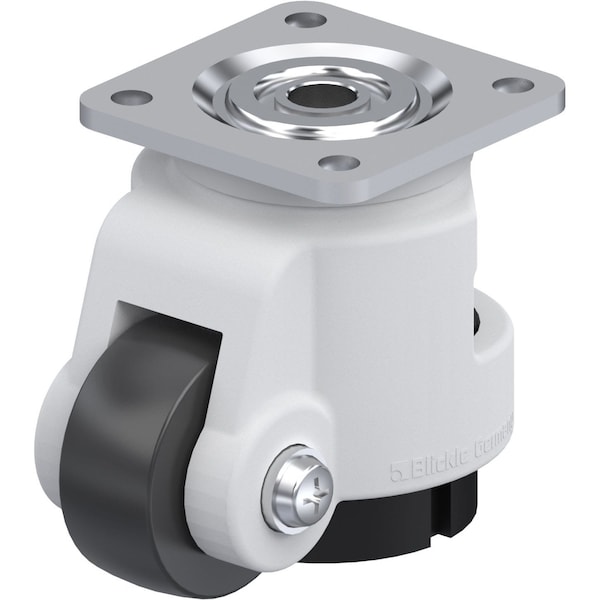

Leveling Caster, 2200 lb.Load, Black Wheel

  • Mfr # HRSP-POA 72G

  • Zoro # G1617592

product price: $163.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Nylon
Caster Brake Type
Leveling Pad
Wheel Dia.
2 13/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HRSP-POA 72G
Zoro #
G1617592
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
2 13/16 in
Wheel Width
1 1/4 in
Mounting Height
4 13/16 in
Mounting Plate Size
95 mm x 95 mm
Mounting Plate Thickness
3.5 mm
Mounting Bolt Dia.
3/8 in
Swivel Radius
91 mm
Caster Thread Size
M8
Overall Height
4-3/4in
Maximum Leveling Height
134 mm
Retracted Height
122 mm
Mounting Plate Width
95 mm
Bolt Hole Spacing - Width
2.75 in
For Axle Dia.
8 mm
Mounting Plate Length
95 mm
Overall Wheel Width
1 1/4 in
Bolt Hole Spacing - Length
2.75 in

Details

Item
Leveling Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Nylon
Caster Brake Type
Leveling Pad
Load Rating
2200 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Aluminum
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
70 mm x 70 mm
Inside Bolt Hole Spacing
70 mm x 70 mm
Caster Plate Hole Pattern
D
Tread
Standard
Includes
Leveling Foot
Application
Used For Leveling Applications
Standards
RoHS, ICWM
Caster Stem Type
No Stem/Plate Included
Operating Position
Rear
Features
Push/Pull Force Reduction
Tread Color
Black
Frame Finish
Powder Coated
Extended Lead
No
Foot/Pad Material
Rubber
Caster Brake Included
No
Wheel Color
Black
Caster Temp. Range Available
Yes
Swivel Raceway Type
Single Ball
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Hard
Load Rating Range
Medium-Duty
Swivel Construction
Kingpin
Operating Temperature Range
-20 Degrees to 180 Degrees F
Wheel Core Material
Nylon
Adjustment Style
Nut
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Series
HRSP Series
Load Capacity
1000 kg
Load Capacity - Maximum
2,205 lb
Caster Features
Corrosion-Resistant
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Square
Mounting Hole Type
Hole

Description

Swivel, Plate Caster, Load Rating 2200 lb, Wheel Dia. 2 13/16 in, Wheel Width 1 1/4 in, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Leveling Pad, Tread Shape Standard
