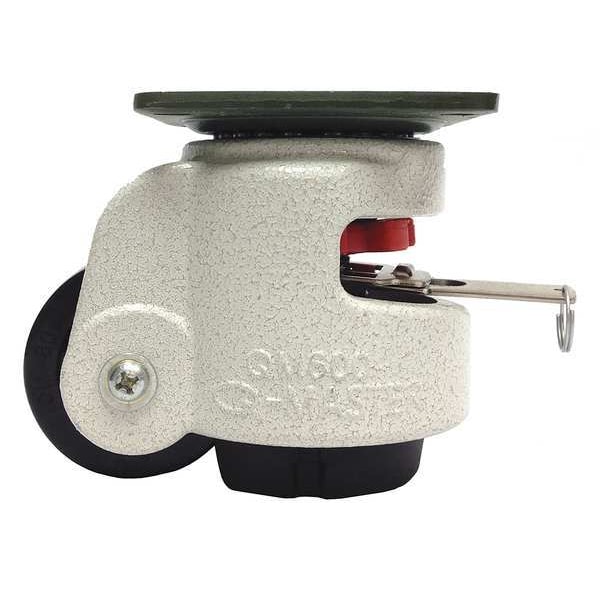

Zoro Select Leveling Caster, Nylon, 2-1/2 in., 727 lb. WMIWR-62PF - main

Leveling Caster, Nylon, 2-1/2 in., 727 lb.

  • Mfr # WMIWR-62PF

  • Zoro # G8959377

product price: $70.89
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Nylon
Caster Brake Type
Leveling Pad
Wheel Dia.
2 1/2 in
Wheel Width
1 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WMIWR-62PF
Zoro #
G8959377
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
2 1/2 in
Wheel Width
1 1/4 in
Mounting Height
4 3/32 in
Mounting Plate Size
3-9/16 in x 3-9/16 in
Mounting Plate Thickness
5 mm
Mounting Bolt Dia.
8 mm
Stem Dia.
No Stem
Overall Height
4-1/8in
Maximum Leveling Height
4 11/16 in
Mounting Plate Length
90 mm
Bolt Hole Spacing - Width
9.5 mm
Overall Wheel Width
2 1/2 in
Bolt Hole Spacing - Length
8 mm
Mounting Plate Width
90 mm

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Nylon
Caster Brake Type
Leveling Pad
Load Rating
550 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel Hardness Rating
90 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Aluminum
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-3/4 in x 2-3/4 in
Inside Bolt Hole Spacing
2-3/4 in x 2-3/4 in
Caster Plate Hole Pattern
D
Wheel Color
Black
Includes
Mounting Hardware
Standards
ANSI ICWM
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Features
Anti-Vibration, Roll and Set, Rotation Handle
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. WMQW80
Frame Finish
Powder Coated
Operating Position
Side
Foot/Pad Material
Rubber
Swivel Raceway Type
Double Ball
Adjustment Style
Ratchet, Thumbwheel
Operating Temperature Range
14 Degrees to 194 Degrees F
Includes Thread Guards
No
Wheel Core Material
Nylon
Load Rating Range
300 to 999 lb
Swivel Construction
Kingpinless
Wheel/Tread Hardness Rating
Hard
Load Capacity - Maximum
550 lb
Mounting Hole Type
Hole
For Surface Type
Asphalt, Ceramic, Rubber, Tile, Vinyl, Wood
Caster Features
Low Profile
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid

Description

Swivel, Plate Caster, Load Rating 550 lb, Wheel Dia. 2 1/2 in, Wheel Width 1 1/4 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Leveling Pad, Tread Shape Standard
