  11. Leveling Caster, Nylon, 3 in., 2200 lb.

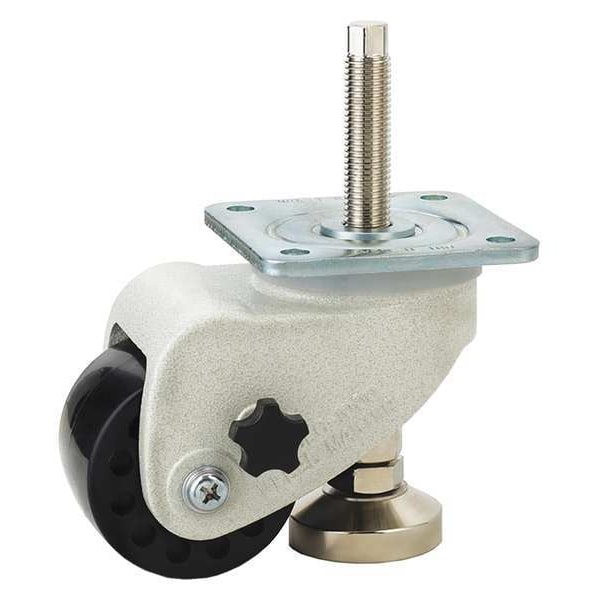

Zoro Select Leveling Caster, Nylon, 3 in., 2200 lb. WMLC-1000FSB - main

Leveling Caster, Nylon, 3 in., 2200 lb.

  • Mfr # WMLC-1000FSB

  • Zoro # G8959413

product price: $116.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Nylon
Caster Brake Type
Leveling Pad
Wheel Dia.
3 in
Wheel Width
2 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WMLC-1000FSB
Zoro #
G8959413
UPC #
-
Country of Origin
Mexico

Dimensions

Wheel Dia.
3 in
Wheel Width
2 1/4 in
Mounting Height
4 13/32 in
Mounting Plate Size
3-3/4 in x 3-3/4 in
Mounting Plate Thickness
6 mm
Mounting Bolt Dia.
8 mm
Stem Dia.
5/8"
Overall Height
4-13/32in
Stem Length
2-23/64"
Maximum Leveling Height
6 3/4 in
Overall Wheel Width
3 in
Bolt Hole Spacing - Width
9.5 mm
Bolt Hole Spacing - Length
8 mm
Mounting Plate Width
95 mm
Mounting Plate Length
95 mm

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Nylon
Caster Brake Type
Leveling Pad
Load Rating
1100 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel Hardness Rating
90 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Aluminum
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-3/4 in x 2-3/4 in
Inside Bolt Hole Spacing
2-3/4 in x 2-3/4 in
Caster Plate Hole Pattern
D
Caster Brake Included
Yes
Caster Stem Type
Threaded
Foot/Pad Material
Steel
Features
New Concepts Leveling Casters
Caster Temp. Range Available
Yes
Includes
Mounting Hardware
Replacement Wheel
Mfr. No. WMW1000
Frame Finish
Powder Coated
Wheel Color
Black
Operating Position
Side
Standards
ANSI ICWM
Wheel Core Material
Nylon
Includes Thread Guards
No
Swivel Construction
Kingpinless
Operating Temperature Range
14 Degrees to 194 Degrees F
Load Rating Range
1000 to 2999 lb
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Hard
Adjustment Style
Nut
Load Capacity - Maximum
1,100 lb
Brake Location
Left Side
For Surface Type
Asphalt, Ceramic, Rubber, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Caster Features
Quiet-Roll
Wheel Core Type
Solid
Mounting Hole Type
Hole

Description

Swivel, Plate Caster, Load Rating 1100 lb, Wheel Dia. 3 in, Wheel Width 2 1/4 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Leveling Pad, Tread Shape Standard
