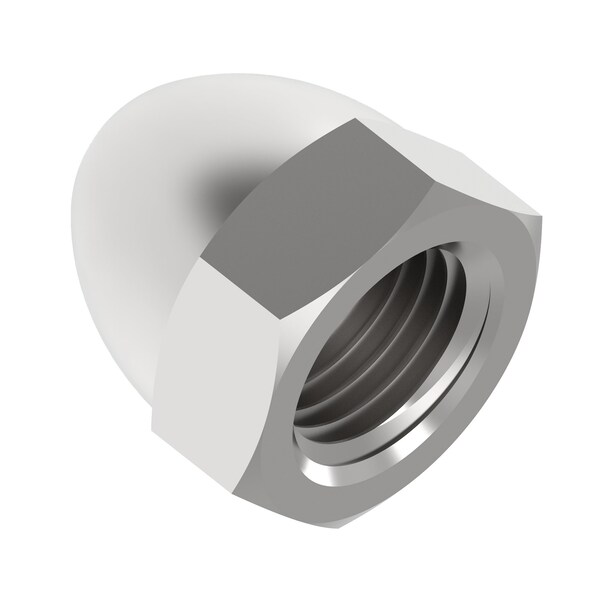

Low Crown Cap Nut, 7/16"-20, 18-8 Stainless Steel, Plain, 0.688 in H, 5 PK
Mfr # CPB247
Zoro # G806001093
CAD Available
product price: $11.65
/pk 5, $2.33/eaKey Features
CAD Drawing
Material
Stainless Steel
Profile
Low Crown
Finish
Plain
Material Grade/Class
Not Graded
Overall Height
0.688 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CPB247
Zoro #
G806001093
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
7/16"-20
Overall Height
0.688 in
Hex Width
5/8 in
Nut Height
11/16 in
Fastener Thread Depth
7/16 in
Width Across Flats
5/8 in
Thread Depth
7/16"
Dia./Thread Size
7/16"-20
Description
Cap Nut, Profile Low Crown, Material Grade/Class 18-8, Material Stainless Steel, Finish Plain, Thread Size 7/16 In.-20, Overall Height 0.688 in, Hex Width 5/8 in, Tensile Strength 85,000 psi, Dimensional Standards SAE J483, Material Quality Standards AISI Grade 303, ASTM, System of Measurement Inch, Color Gray, Lock Type Non-Locking, Pack Size Small Pack, Rockwell Hardness B83 to B95, Thread Direction Right Hand, Package Quantity 5
