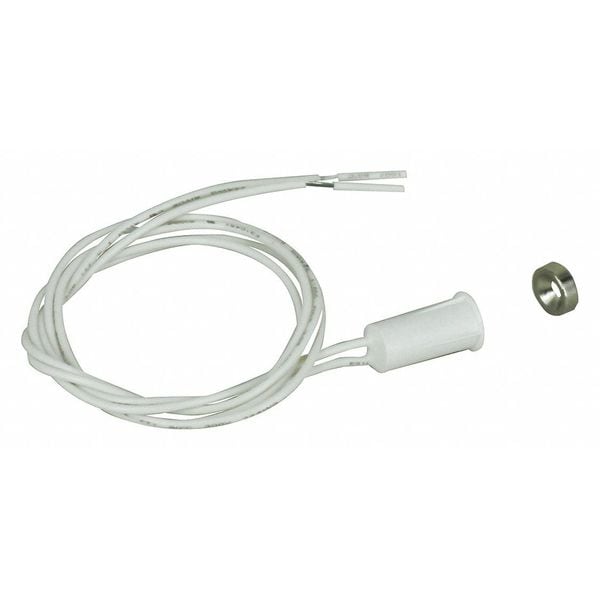

Magnetic Contact, Recessed Mount
Mfr # 2EXU9
Zoro # G0596215
product price:Â
$
7.59
/ea
Key Features
Type
Recessed Mount
For Use With
Windows and Doors
Material
Plastic
Includes
Mounting Hardware
Response Time (Sec.)
0.5ms Max
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 2EXU9
- Zoro #
- G0596215
- UPC #
- 190735442494
- Country of Origin
- China
- Item
- Magnetic Contact
- Type
- Recessed Mount
- For Use With
- Windows and Doors
- Material
- Plastic
- Includes
- Mounting Hardware
- Response Time (Sec.)
- 0.5ms Max
- Loop Configuration
- Closed
- Max. Current (Amps)
- 0.5
- Max. Gap Distance (In.)
- 1 1/16 in
- Standards
- Yes
- Electrical Configuration
- Normally Open
- Max. Voltage
- 100V DC/V AC
- Operating Temp. Range (F)
- -15 to 160
- Product Type
- Magnetic Contact
- Gap Distance - Maximum
- 1 1/16 in
- Current - Maximum
- 0.5 A
- Compatible Product Type
- Doors, Windows
- Operating Temperature - Maximum
- 160 Degrees F
- Operating Temperature - Minimum
- -15 Degrees F
- Response Time
- 0.5 ms Max
- Voltage - Maximum
- 100V AC/DC
Description
Magnetic Contact, Recessed Mount, Electrical Configuration Normally Open, Loop Configuration Closed, Material ABS Plastic, Color White, Max Current (Amps) 0.5, Max Voltage 100 VDC/VAC, Gap Distance 1 Min, 1 1/16 Max In, Length 7/16 In, Height 3/8 In, Width 9/16 In, Depth 7/16 In, Lead Type #22 AWG, Lead Length 18 In, Operating Temp Range -15 to 160 F, Response Time 0.5ms Max Sec, Mounting Recessed Mounted, Standards, Includes Hardware, For Use With Windows and Doors
