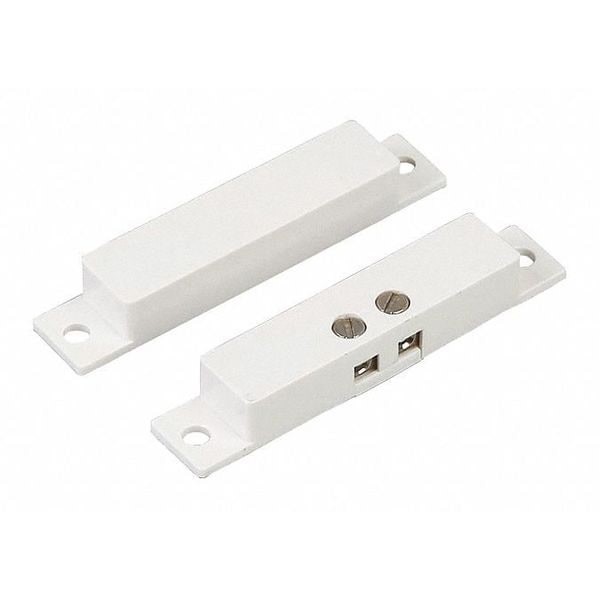

Magnetic Contact, Surface Mount, L 3/8 In

Mfr # 2EXT8
Zoro # G1282741

Key Features

Type

Surface Mount/Adhesive

For Use With

Windows and Doors

Material

Plastic

Includes

Mounting Hardware

Width (In.)

2 in

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 2EXT8
Zoro #: G1282741
UPC #: 190735442395
Country of Origin: China

Dimensions

Width (In.): 2 in
Lead Size: #6 Screw
Depth (In.): 3/8 in
Height (In.): 9/32 in
Length (In.): 3/8 in
Overall Length: 2 in
Overall Depth: 3/8 in
Overall Height: 5/16 in
Wire Rope Length: 2 in
Length: 2 in

Details

Item: Magnetic Contact
Type: Surface Mount/Adhesive
For Use With: Windows and Doors
Material: Plastic
Includes: Mounting Hardware
Max. Voltage: 100V DC/V AC
Response Time (Sec.): 0.5ms Max
Electrical Configuration: Normally Open
Standards: Yes
Max. Current (Amps): 0.5
Max. Gap Distance (In.): 1 in
Loop Configuration: Closed
Operating Temp. Range (F): -15 to 160
Operating Temperature - Maximum: 160 Degrees F
Compatible Product Type: Doors, Windows
Voltage - Maximum: 100V AC/DC
Response Time: 0.5 ms Max
Operating Temperature - Minimum: -15 Degrees F
Product Type: Magnetic Contact
Current - Maximum: 0.5 A
Gap Distance - Maximum: 1 in

Description

Magnetic Contact, Surface Mount, Electrical Configuration Normally Open, Loop Configuration Closed, Material ABS Plastic, Color White, Max Current (Amps) 0.5, Max Voltage 100 VDC/VAC, Gap Distance 29/32 Min, 1 Max In, Length 3/8 In, Height 9/32 In, Width 2 In, Depth 3/8 In, Operating Temp Range -15 to 160 F, Response Time 0.5ms Max Sec, Mounting Surface, Adhesive and Two #8 Screw Holes, Standards, Includes Hardware, For Use With Windows and Doors
