  11. Manual Platform Lift Truck, Manual, 400 lb Load Capacity, Hand Winch Lift Control

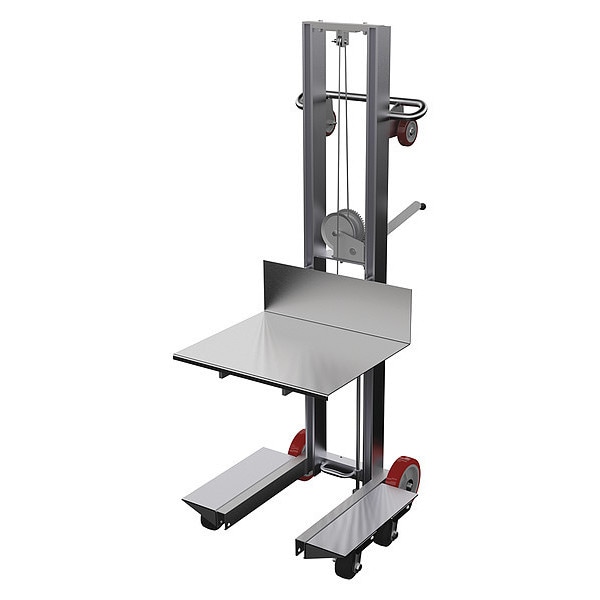

Zoro Select Manual Platform Lift Truck, Manual, 400 lb Load Capacity, Hand Winch Lift Control ALLW-2420-4SFL - main

Manual Platform Lift Truck, Manual, 400 lb Load Capacity, Hand Winch Lift Control

  • Mfr # ALLW-2420-4SFL

  • Zoro # G9934705

product price: $1,180.99
/ea
Additional $195.00 delivery surcharge applies per item.
See details

Key Features

Overall Height
69 5/16 in
Overall Length
33 1/8 in
Overall Width
27 1/8 in
Material
Aluminum/Steel
Color
Silver
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ALLW-2420-4SFL
Zoro #
G9934705
UPC #
691215002356
Country of Origin
United States

Dimensions

Overall Height
69 5/16 in
Overall Length
33 1/8 in
Overall Width
27 1/8 in
Platform Length
20 in
Platform Width
24 in
Front Caster Dia.
4 in
Lifting Height Max.
60 in
Rear Wheel Dia.
8 in
Rear Caster Dia.
6 in
Lifting Height Min.
6 1/8 in
Front Wheel Dia.
2 in
Overall LxWxH
33 1/8 in x 27 1/8 in x 69 3/8 in
Minimum Lifting Height
6 1/8 in
Stowed Length
33 1/8 in
Caster Wheel Width
1 1/4 in, 2 in
Maximum Lifting Height
60 in
Overall Height with Platform Raised
69 3/8 in
Caster Wheel Dia.
4 in
Platform LxW
20 in x 24 in
Overall Height with Platform Lowered
69 3/8 in
Stowed Height
69 3/8 in
Lifting Height Range
6 1/8 in to 60 in
Base Outside Width
27 1/8 in

Details

Material
Aluminum/Steel
Color
Silver
Load Capacity
400 lb
Item
Manual Platform Lift Truck
Handle Type
Straight
Assembled
Yes
Lift Mechanism
Chain/Cable
Lift Base Style
Fixed Straddle
Lift Speed Unloaded
Ajustable
Frame Material
Aluminum
Load Center
10 in
Powered By
Hand Winch
Includes
Floor Lock
Caster Wheel Type
Tread on Core
Base Legs Outside Dim.
27 3/16 in
Invertible Forks
No
Lift Mobility
Manual Lift, Manual Push
Lift Speed Loaded
Ajustable
Lift Control
Hand Winch
For Use With
Ideal for lifting and transporting loads from delivery trucks to docks, or use to inventory storage systems.
Weight
141 lb
Base Style
Fixed
Wheel Configuration
(4) Swivel, (2) Rigid
Handle Material
Aluminum
Platform Material
Aluminum
Axle-Mounted Wheel Type
Tread on Core
Non-Marking Casters/Wheels
Yes
Base Material
Aluminum
Caster Wheel/Tread Material
Polyurethane
Frame Type
Flat Back
Operation
Manual

Description

Platform Lift Truck, Load Capacity 400 lb, Minimum Lifting Height 6 1/8 in, Maximum Lifting Height 60 in, Platform Length 20 in, Platform Width 24 in, Lift Control Hand Winch, Lift Mechanism Chain, Base Style Fixed, Base Outside Width 27 1/8 in, Frame Type Flat Back, Load Center 10 in, Overall Height with Platform Raised 69 3/8 in, Overall Length 33 1/8 in, Overall Width 27 1/8 in, Frame Material Aluminum, Platform Material Aluminum, Base Material Aluminum, Axle-Mounted Wheel Type Tread on Core
