  11. Manual Platform Lift Trucks, Manual, 175 lb Load Capacity, Push Button Lift Control

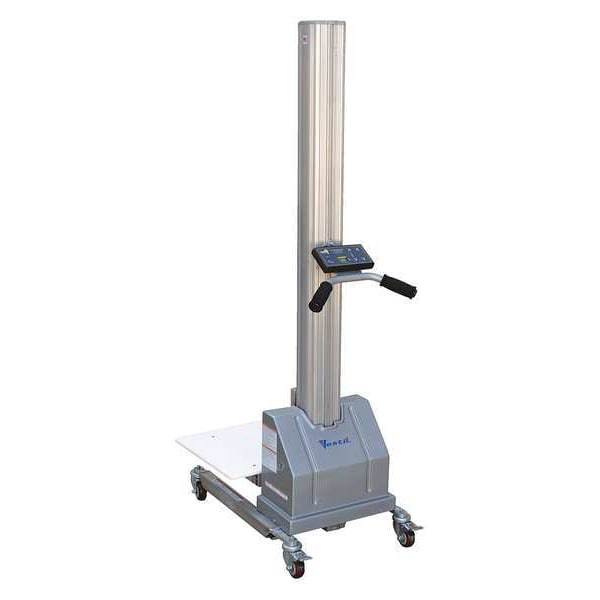

Zoro Select Manual Platform Lift Trucks, Manual, 175 lb Load Capacity, Push Button Lift Control PEL-88A-D3 - main

Manual Platform Lift Trucks, Manual, 175 lb Load Capacity, Push Button Lift Control

  • Mfr # PEL-88A-D3

  • Zoro # G3496075

product price: $2,649.99
/ea
Item requires special delivery charges. A $415.00 per item surcharge will be applied.

Key Features

Overall Height
70 3/16 in
Overall Length
36 1/8 in
Overall Width
23 1/2 in
Material
Aluminum
Color
Silver
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PEL-88A-D3
Zoro #
G3496075
UPC #
691215029636
Country of Origin
United States

Dimensions

Overall Height
70 3/16 in
Overall Length
36 1/8 in
Overall Width
23 1/2 in
Platform Length
18 1/2 in
Manufacturers Warranty Length
1 yr
Base Legs Outside Dia.
20-7/16"
Base Legs Inside Dia.
15"
Lifting Height Min.
5 1/2 in
Front Wheel Dia.
3 in
Platform Width
23 1/2 in
Lifting Height Max.
57 in
Rear Wheel Dia.
3 in
Rear Caster Dia.
3 in
Front Caster Dia.
3 in
Minimum Lifting Height
5 1/2 in
Maximum Lifting Height
57 in
Overall Height with Platform Raised
70 1/4 in
Stowed Height
70 1/4 in
Stowed Length
36 1/8 in
Caster Wheel Dia.
3 in
Platform LxW
18 1/2 in x 23 1/2 in
Overall Height with Platform Lowered
70 1/4 in
Caster Mounting Height
2 in
Base Inside Width
15 in
Base Outside Width
20 1/2 in
Lifting Height Range
5 1/2 in to 57 in
Overall LxWxH
36 1/8 in x 23 1/2 in x 70 1/4 in

Details

Material
Aluminum
Color
Silver
Load Capacity
175 lb
Item
Manual Platform Lift Trucks
Handle Type
Straight
Assembled
Yes
Lift Mechanism
Chain/Cable
Lift Speed Unloaded
Adjustable
Lift Voltage
24V DC
Lift Base Style
Fixed Straddle
Lift Control
Push Button
Powered By
Battery
Base Legs Outside Dim.
20 7/16 in
Invertible Forks
No
Includes
Touch Pad Control with Battery Level Gauge
Load Center
9 in
Caster Wheel Type
Tread on Core
Lift Speed Loaded
Adjustable
Base Legs Inside Dim.
15 in
Lift Mobility
Electric Lift, Manual Push
Frame Material
Aluminum
For Use With
Used for transport and positioning loads quickly with just the push of the button
Voltage
24V
Weight
458 lb
Features
Touch-Pad Control
Battery Voltage
AC
Axle-Mounted Wheel Type
Tread on Core
Non-Marking Casters/Wheels
No
Frame Type
Flat Back
Base Style
Fixed
Handle Material
Steel
Operation
Manual
Base Material
Aluminum
Caster Wheel/Tread Material
Polyurethane
Caster Mounting Type
Stem
Wheel Configuration
(2) Swivel, (2) Swivel with Brake
Platform Material
Aluminum
Power Source
Electric - Cordless

Description

Powered Platform Lift Trucks, Load Capacity 175 lb, Minimum Lifting Height 5 1/2 in, Maximum Lifting Height 57 in, Platform Length 18 1/2 in, Platform Width 23 1/2 in, Lift Control Push Button, Lift Mechanism Chain/Cable, Base Style Fixed, Base Inside Width 15 in, Base Outside Width 20 1/2 in, Frame Type Flat Back, Load Center 9 in, Overall Height with Platform Raised 70 1/4 in, Overall Length 36 1/8 in, Overall Width 23 1/2 in, Frame Material Aluminum, Platform Material Aluminum
