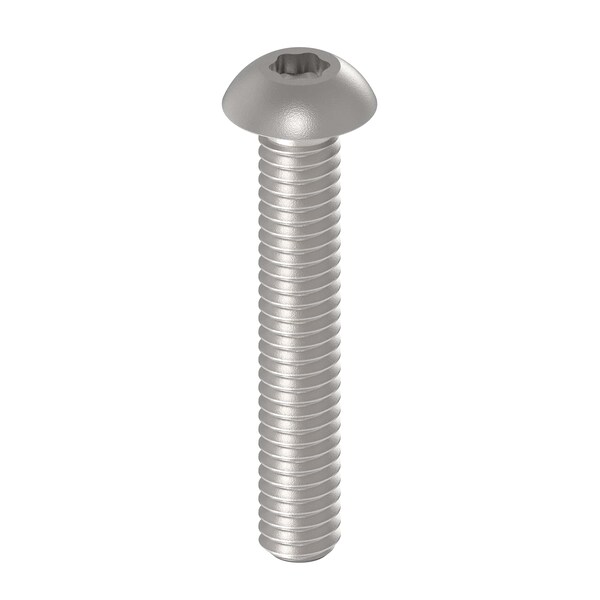

No. 8-32 x 1 in Torx Button Standard Machine Screw, Unfinished A286 Stainless Steel
Mfr # ZBM183-286
Zoro # G410396066
CAD Available
product price:Â $15.59
/eaKey Features
Button Head
Torx Drive
CAD Drawing
System of Measurement
Inch
Drive Size
T20
Material
Stainless Steel
Finish
Plain
Tensile Strength
160,000 psi
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
ZBM183-286
Zoro #
G410396066
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
#8-32
Fastener Length
1 in
Drive Size
T20
Head Height
0.087 in
Minimum Thread Length
1 in
Overall Length
1 3/32 in
Maximum Head Height
3/32 in
Screw Size
#8
Head Width
0.312 in
Maximum Head Width
5/16 in
Description
Machine Screw, Head Type Button, Material Stainless Steel, Finish Plain, Drive Six-Lobe, Thread Size #8-32, Fastener Length 1 in, Head Width 0.312 in, Head Height 0.087 in, Drive Size T20, Tensile Strength 160,000 psi, Dimensional Standards RoHS Compliant, Pack Size Small, Minimum Thread Length 1 in, Type Machine Screw, Washer Outside Diameter Not Applicable, Washer Thickness Not Applicable, Maximum Head Width 5/16 in, Minimum Head Width Not Applicable, Maximum Head Height 3/32 in
