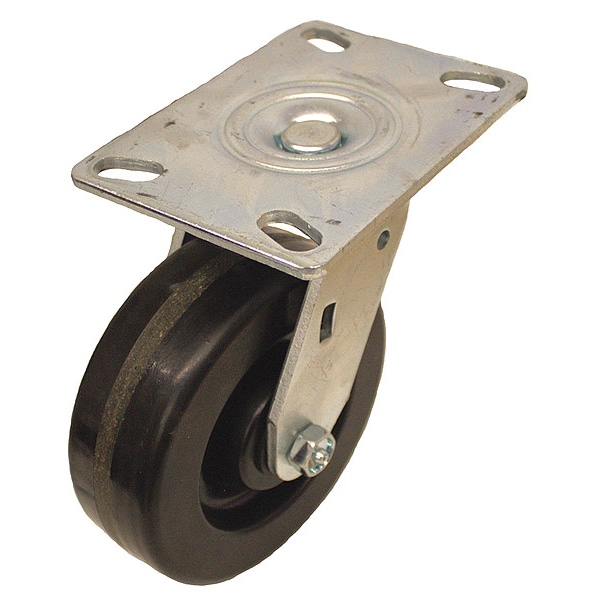

NSF-Listed Plate Caster, 1200 lb. Ld Rating, Roller

  • Mfr # P21S-PH060R-16

  • Zoro # G7278518

product price:
$
35.15
/ea

Key Features

Core Color
Black
Thread Guards
No
Wheel Color
Black
Caster Frame Material
Steel
Overall Height
7-1/2"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-PH060R-16
Zoro #
G7278518
UPC #
-
Country of Origin
China

Dimensions

Overall Height
7-1/2"
Mounting Bolt Dia.
1/2 in
Wheel Dia.
6 in
Swivel Radius
5 in
Wheel Width
2 in
Mounting Plate Size
4-1/2in x 6-1/4in
Mounting Height
7 1/2 in
Mounting Plate Length
6 1/4 in
Mounting Plate Width
4 1/2 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Thickness
7/32 in
Inside Slot Spacing - Length
4.938 in
Outside Slot Spacing - Length
5.25 in
Bolt Hole Spacing - Length
2.438 in
Overall Wheel Width
2 in

Details

Core Color
Black
Thread Guards
No
Wheel Color
Black
Caster Frame Material
Steel
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Brake Included
No
Number of Wheels
1
Extended Lead
No
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Replacement Wheel
Mfr. No. P-PH-060X020/050R
Item
Plate Caster
Frame Finish
Zinc Plated
Caster Plate Hole Pattern
A
Caster Temp. Range Available
Yes
Features
Floor Protective
Load Rating
1200 lb
Standards
ANSI ICWM, NSF Listed
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Non-Marking
Yes
Caster Sub-Type
Swivel
Caster Brake Type
No Brake
Wheel Bearing Type
Roller
Load Rating Range
Medium-Duty
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Includes Thread Guards
No
Wheel Core Material
Phenolic
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Number of Mounting Holes
4
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
System of Measurement
Inch
Series
P21 Series
Load Capacity
1200 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Tread Color
Black
Caster Mounting Type
Plate
ESD Conductive
No
Accessories
Optional: P-DL21-16 (Directional Lock)
Load Capacity - Maximum
1,200 lb
Compatible With
P-PH-060X020/050R
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant
Wheel Hardness Rating
102 HRE
Mounting Hole Type
Slot
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
250 Degrees F
Operating Temperature Range
-40 Degrees To 250 Degrees F

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
