  11. NSF-Listed Plate Caster, 1250 lb. Ld Rating, Roller
Zoro Select NSF-Listed Plate Caster, 1250 lb. Ld Rating, Roller P21R-C080R-14 - main

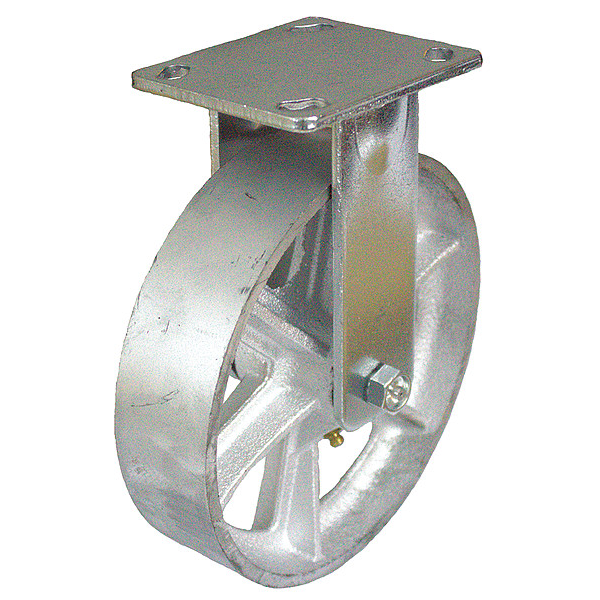

NSF-Listed Plate Caster, 1250 lb. Ld Rating, Roller

  • Mfr # P21R-C080R-14

  • Zoro # G7279699

product price: $31.95
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Cast Iron
Caster Brake Type
No Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21R-C080R-14
Zoro #
G7279699
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Swivel Radius
None- Rigid Caster
Overall Height
9-1/2in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 1/2 in
Bolt Hole Spacing - Length
2.625 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Width
4 in
Inside Slot Spacing - Width
2.625 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Cast Iron
Caster Brake Type
No Brake
Load Rating
1250 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Silver
Wheel Hardness Rating
180-220 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Replacement Wheel
Mfr. No. P-C-080x020/050R
Standards
RoHS, ICWM, NSF
Caster Temp. Range Available
Yes
Caster Brake Included
No
Application
Retail, Industrial, Commercial
Frame Finish
Zinc Plated
Wheel Color
Silver
Extended Lead
No
Features
Push/Pull Force Reduction
Thread Guards
No
Wheel/Tread Hardness Rating
Extra Hard
Load Rating Range
Medium-Duty
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel Core Material
Cast Iron
Series
P21 Series
Load Capacity
1250 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Color
Silver
ESD Conductive
No
Tread
Standard
Compatible With
P-C-080X020/050R
Load Capacity - Maximum
1,250 lb
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Wheel Core Type
Spoke
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
Up To 800 Degrees F
Operating Temperature - Maximum
250 Degrees F

Description

Rigid, Plate Caster, Load Rating 1250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
