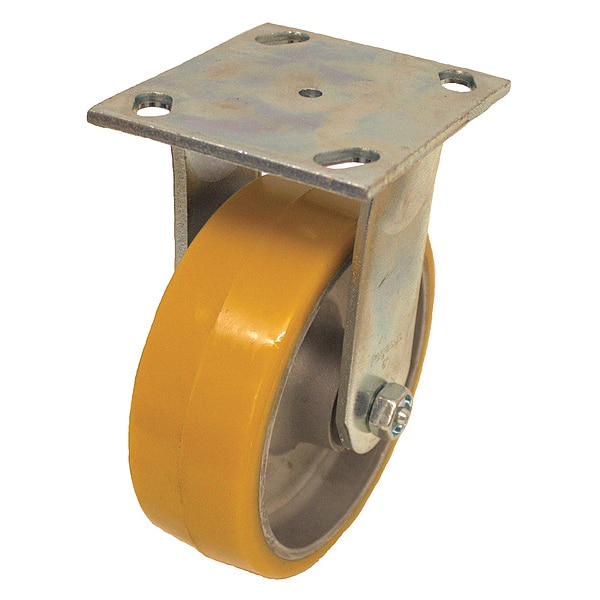

Zoro Select NSF-Listed Plate Caster, 1250 lb. Ld Rating, Roller P21R-UA080R-14 - main

NSF-Listed Plate Caster, 1250 lb. Ld Rating, Roller

  • Mfr # P21R-UA080R-14

  • Zoro # G7277949

product price:  $52.55
/ea

Key Features

Overall Height
9-1/2in
Replacement Wheel
Mfr. No. P-UA-080x020/050R
Wheel Color
Yellow
Number of Wheels
1
Caster Plate Hole Pattern
B
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21R-UA080R-14
Zoro #
G7277949
UPC #
-
Country of Origin
China

Dimensions

Overall Height
9-1/2in
Swivel Radius
None- Rigid Caster
Wheel Width
2 in
Wheel Dia.
8 in
Mounting Bolt Dia.
3/8 in
Mounting Height
9 1/2 in
Mounting Plate Size
4in x 4-1/2in
Outside Slot Spacing - Length
3.625 in
Overall Wheel Width
2 in
Mounting Plate Thickness
1/4in
Inside Slot Spacing - Width
2.625 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 in
Outside Slot Spacing - Width
3 in

Details

Replacement Wheel
Mfr. No. P-UA-080x020/050R
Wheel Color
Yellow
Number of Wheels
1
Caster Plate Hole Pattern
B
Caster Brake Included
No
Caster Sub-Type
Rigid
Features
Floor Protective
Core Color
Silver
Load Rating
1250 lb
Extended Lead
No
Standards
ANSI ICWM, NSF Listed
Caster Frame Material
Steel
Non-Marking
Yes
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Temp. Range Available
Yes
Thread Guards
No
Item
Rigid Caster
Inside Bolt Hole Spacing
3 in x 3 in
Frame Finish
Zinc Plated
Caster Brake Type
No Brake
Wheel Bearing Type
Roller
Wheel Core Material
Aluminum
Tread Shape
Standard
Number of Mounting Holes
4
Includes Thread Guards
No
Load Rating Range
Medium-Duty
Wheel/Tread Hardness Rating
Firm
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Inch
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Tread Color
Yellow
ESD Conductive
No
Load Capacity
1250 lb
Series
P21 Series
Caster Mounting Type
Plate
Wheel Hardness Rating
92 Shore A
Load Capacity - Maximum
1,250 lb
Compatible With
P-UA-080X020/050R
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Rigid, Plate Caster, Load Rating 1250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
