  11. NSF-Listed Plate Caster, 1250 lb. Ld Rating, Roller
Zoro Select NSF-Listed Plate Caster, 1250 lb. Ld Rating, Roller P21S-PH080R-14-CB - main

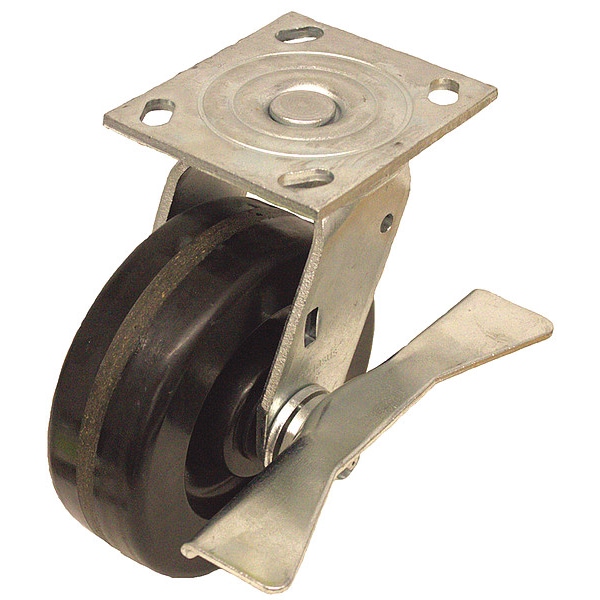

NSF-Listed Plate Caster, 1250 lb. Ld Rating, Roller

  • Mfr # P21S-PH080R-14-CB

  • Zoro # G7277991

product price: $58.59
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
Side Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21S-PH080R-14-CB
Zoro #
G7277991
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Overall Height
9-1/2in
Swivel Radius
6-5/8 in
Inside Slot Spacing - Width
2.625 in
Overall Wheel Width
2 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Width
4 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Length
3 in

Details

Item
Swivel Caster with Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
Side Brake
Load Rating
1250 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
Rockwell 102E
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Frame Finish
Zinc Plated
Wheel Color
Black
Caster Brake Included
Yes
Extended Lead
No
Replacement Wheel
Mfr. No. P-PH-080x020/050R
Standards
RoHS, ICWM, NSF
Features
Floor Protective
Application
Retail, Industrial, Commercial
Caster Temp. Range Available
Yes
Thread Guards
No
Includes
Pinch Type Brake
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Wheel Core Material
Phenolic
Swivel Lock Type
No Lock Included
Load Rating Range
Medium-Duty
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Tread Color
Black
Load Capacity
1250 lb
Accessories
Optional: P-DL21-14 (Directional Lock)
Series
P21 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
ESD Conductive
No
Compatible With
P-PH-080X020/050R
Load Capacity - Maximum
1,250 lb
Caster Features
Corrosion-Resistant
Wheel Bearing Material
Steel
Brake Location
Side
Wheel Core Type
Solid
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Operating Temperature Range
-40 Degrees To 250 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
250 Degrees F

Description

Swivel, Plate Caster, Load Rating 1250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
