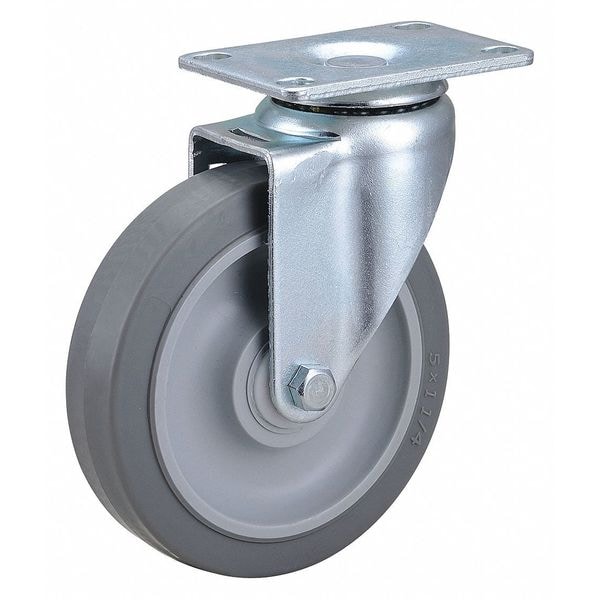

NSF-Listed Plate Caster, 200 lb. Load Rating, Swivel

  • Mfr # 400K61

  • Zoro # G5620717

product price:  $13.45
/ea

Key Features

Non-Marking
Yes
Caster Temp. Range Available
Yes
Wheel Width
1 1/4 in
Wheel Dia.
5 in
Standards
NSF Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
400K61
Zoro #
G5620717
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1 1/4 in
Wheel Dia.
5 in
Mounting Bolt Dia.
5/16 in
Swivel Radius
3 7/8 in
Overall Height
6-5/32"
Mounting Height
6 3/16 in
Mounting Plate Size
2 1/2 in x 3 5/8 in
Mounting Plate Thickness
5/32in

Details

Non-Marking
Yes
Caster Temp. Range Available
Yes
Standards
NSF Listed
Number of Wheels
1
Application
General Purpose
Replacement Wheel
4W919
Extended Lead
No
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Caster Brake Included
No
Wheel Color
Gray
Load Rating
200 lb
Core Color
Gray
Caster Sub-Type
Swivel
Item
Plate Caster
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Caster Frame Material
Steel
Frame Finish
Zinc Plated
Thread Guards
No
Caster Brake Type
No Brake
Includes Thread Guards
No
Swivel Construction
Kingpin
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Soft
Wheel Bearing Type
Delrin
Swivel Raceway Type
Double Ball
Wheel Core Material
Polyolefin
Load Rating Range
0 to 299 lb
Number of Mounting Holes
4
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
Wheel Hardness Rating
75 Shore A
Load Capacity - Maximum
200 lb
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
175 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F

Description

Swivel, Plate Caster, Load Rating 200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
